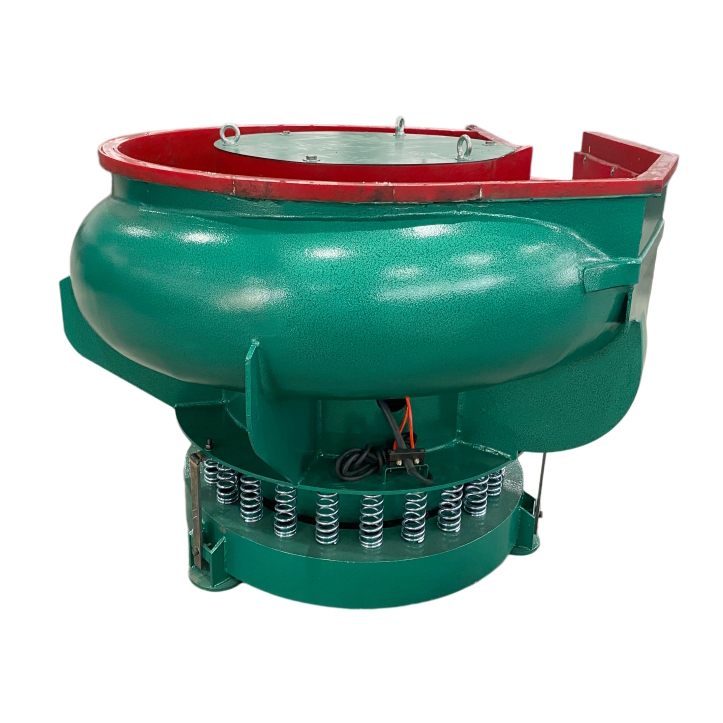

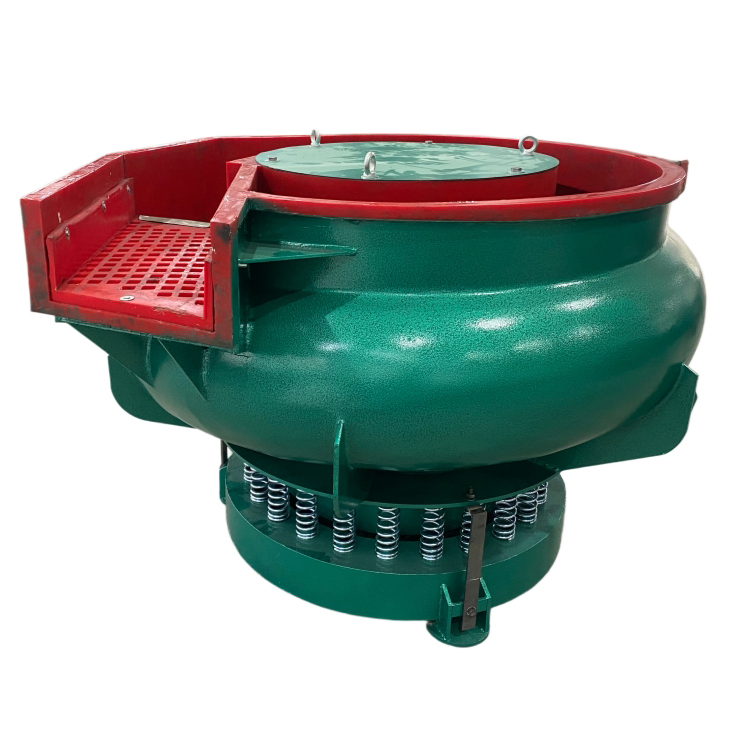

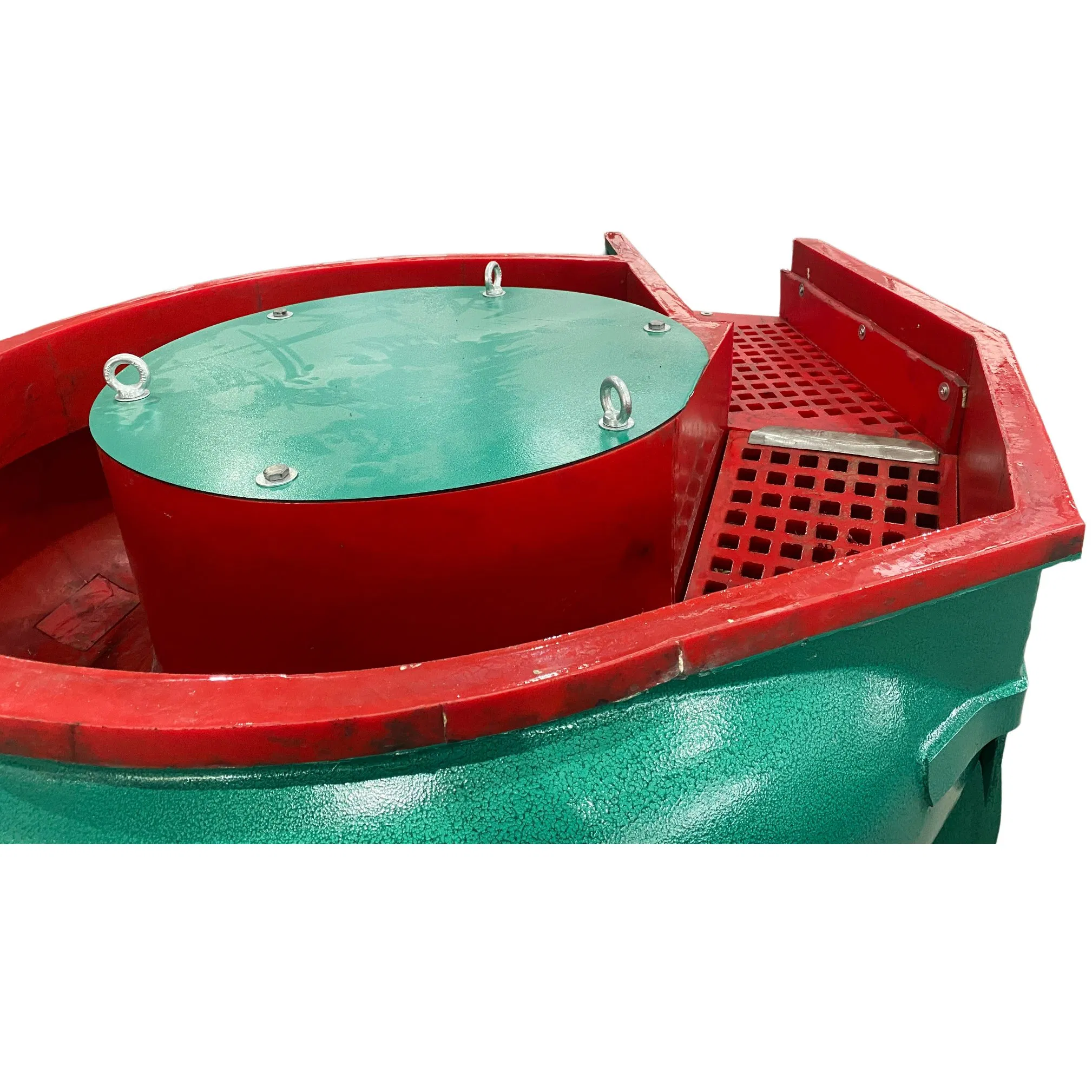

The Metal Vibratory Polishing Machine is built for the most challenging finishing applications. This flexible vibratory bowl range can be used for a variety of applications including deburring, descaling, radiusing, cleaning, polishing, and general surface improvement. It is highly efficient for processing large quantities of mechanical parts. Apart from regular tumbling media, pebble stones, river stones, and tiles can also be used in this equipment.
The vibratory finishing machine operates on the principle of generating three-dimensional high-frequency vibrations within a ring chamber containing grinding media and workpieces. This effectively eliminates burrs, sharp edges, corners, rust, and oil stains, achieving high levels of finishing and brightness.
Vibratory finishing machines are applied to surface polishing, chamfering, deburring, and brightening of various sized workpieces in mass production. It maintains the original dimensional accuracy while eliminating internal stress and enhancing surface finish. This process provides an excellent foundation for subsequent electroplating, spraying, and other surface treatments.
| Technical Specifications (ND-350B) | |||
|---|---|---|---|
| Model NO. | ND-350B | Working Style | Shaking |
| Speed (R/Min) | 1450 | Size (mm) | 1150*1100*900 |
| Weight (Kg) | 450 | Rubber Lining (mm) | 6-20 |
| Amplitude (mm) | 0.8-6 | Motor Power (Kw) | 5.5 |

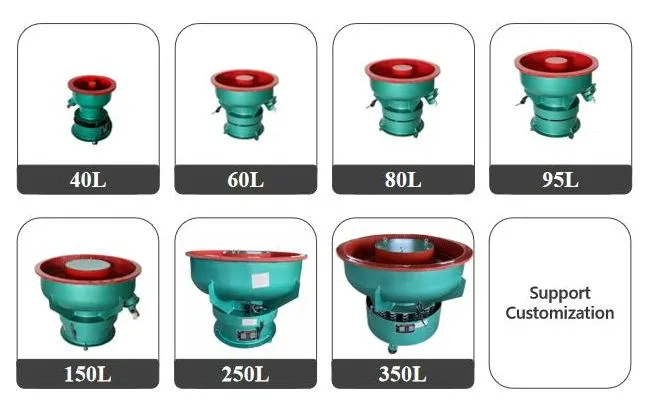

| Model | Capacity (L) | Power (kw) | Amplitude (mm) | Lining (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ND-40 | 40 | 0.55 | 0.8-3 | 6-12 | 50 |
| ND-60 | 60 | 0.75-1.1 | 0.8-3 | 6-12 | 100 |
| ND-95AB | 95 | 1.1 | 0.8-3 | 6-12 | 120 |
| ND-150A/B | 150 | 2.2-3.0 | 0.8-4 | 6-15 | 250 |
| ND-350AB | 350 | 5.5 | 0.8-6 | 6-20 | 450 |
| ND-450AB | 450 | 5.5 | 0.8-6 | 6-20 | 550 |

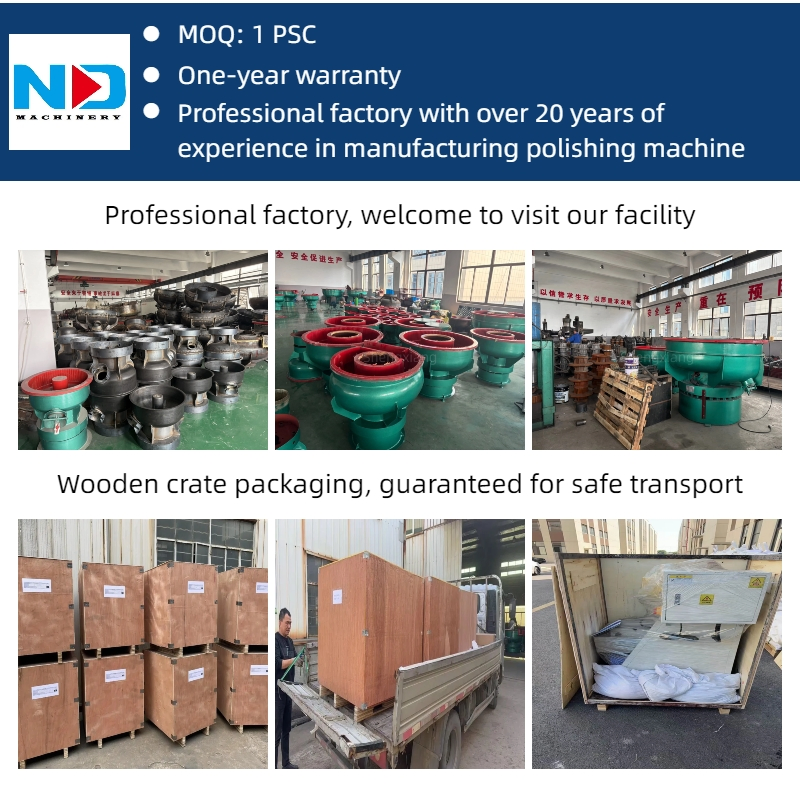

Operating since 2008, our factory specializes in surface treatment solutions. We serve global markets including Southeast Asia, North America, Africa, and Europe. With a professional team and over 20 years of industry experience, we ensure high-quality production and final inspection before every shipment.

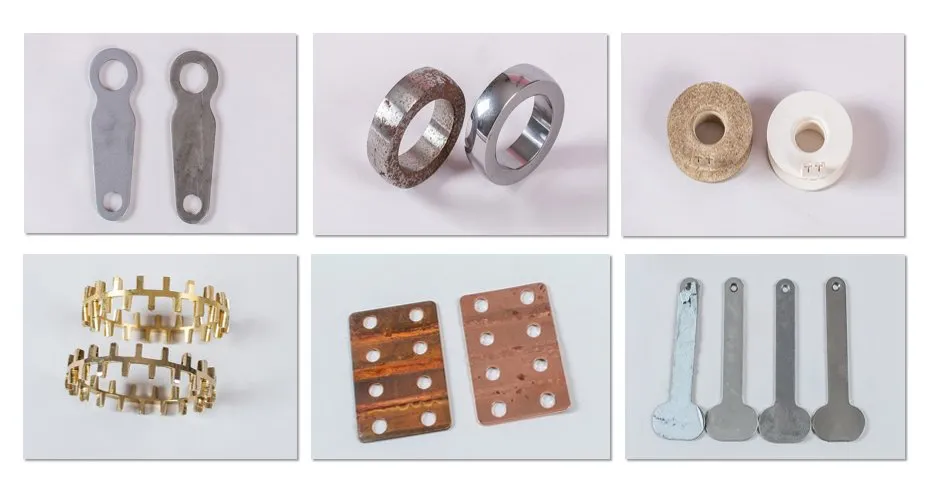

It is suitable for a wide range of metals including steel, aluminum, copper, and various alloys, as well as some hard plastics and ceramic parts.
No, the process is designed to improve surface finish, deburr, and polish without affecting the original dimensional accuracy of the workpiece.
Selection depends on the material of your part and the desired finish. Common media include ceramic, plastic, and stainless steel shapes. Our experts can recommend the best option for your needs.

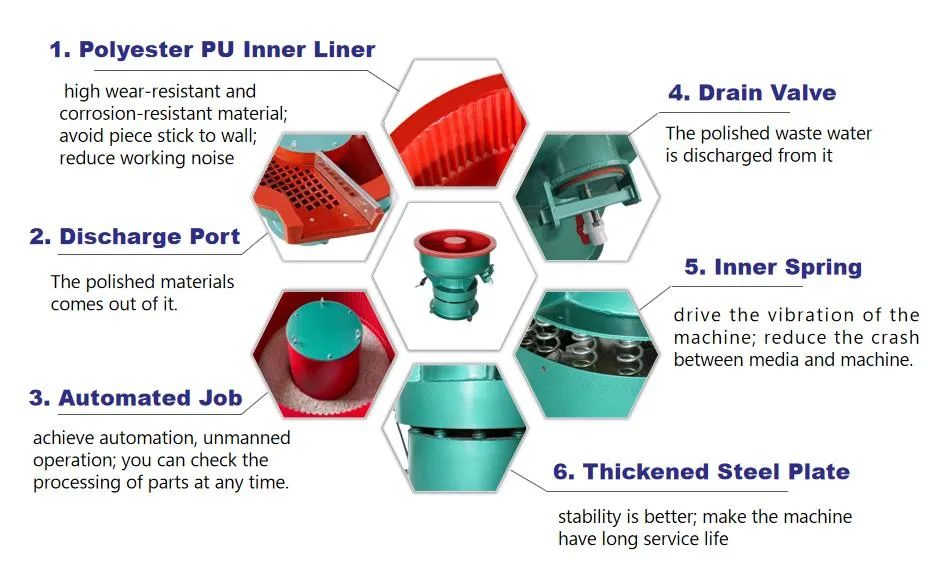

Yes, the machine is designed for long service life with minimal maintenance. Regular checks of the rubber lining and motor lubrication are recommended.
Absolutely. These machines are specifically designed for mass production, allowing for consistent results across high-volume batches.
Standard models can usually be produced and prepared for shipment within one week, depending on the current production capacity.
