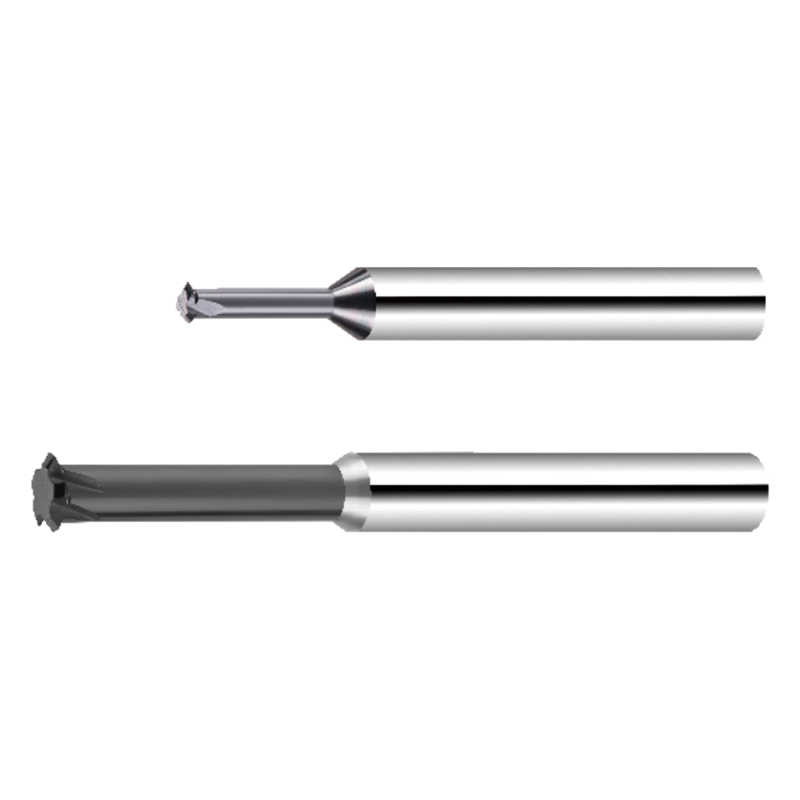

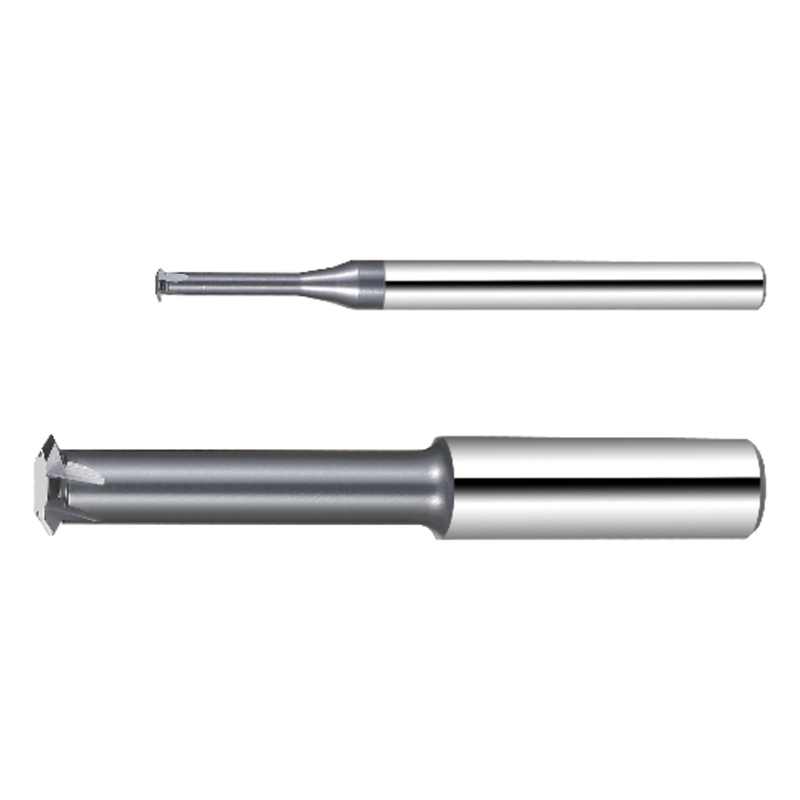

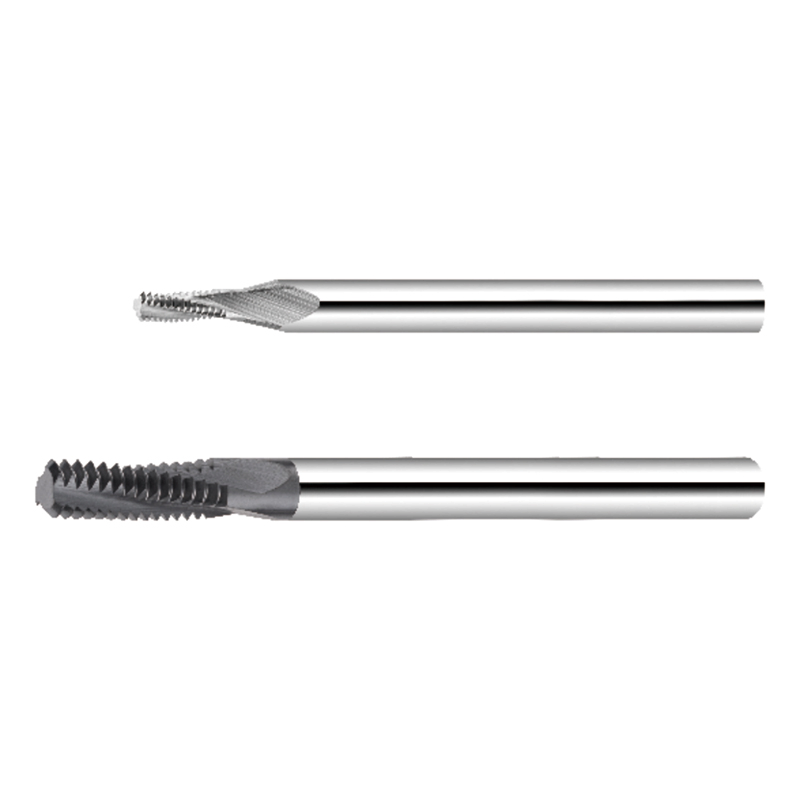

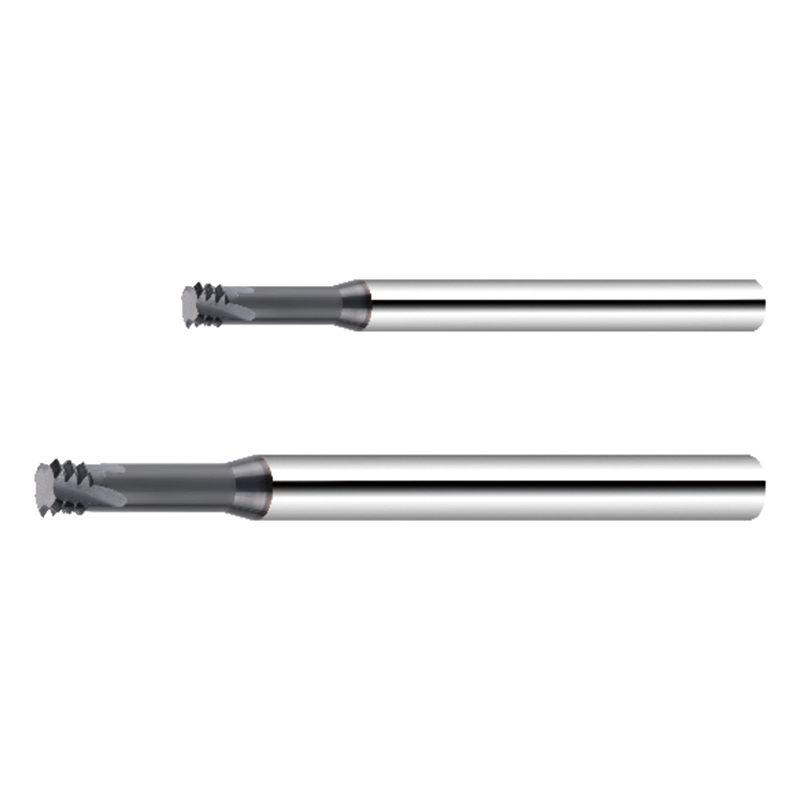

Precision 3-Flute Carbide Straight Shank Thread Milling Cutter End Mill Used for Mold Finishing

⚙️ Basic Information

Model NO.

M1T

Flute Number

2/3/4/5/6/8

Application

Stainless Steel, Alloy Steel, Cast Iron, Carbon Steel

Shank Diameter

4-6mm

Full Length

50mm

Diameter

0.73-5.0mm

Material

Tungsten Steel

HRC

45/55/60/65

Coating

Altin, Tisin, Altisin

Standard

ISO

📄 Product Description

Precision Engineered Solid Carbide Thread Milling Cutter End Mill for Threading

Engineered for high-precision threading applications, our solid carbide thread milling cutter stands out with exceptional durability and machining accuracy, making it a top choice for industries demanding strict quality control. Crafted from premium ultra-fine grain tungsten carbide and enhanced with advanced nano-coating, this tool delivers superior performance across a wide range of materials and threading requirements. Whether for standard or custom threading tasks, it ensures stable cutting, reduced downtime, and consistent thread quality.

Widely adopted in high-precision manufacturing sectors:

Aerospace: Machining threads for engine components and landing gear parts.
Automotive: Thread processing for cylinder blocks and drive shafts.
Medical Devices: Precision threading for implantable medical parts.
Energy Industry: Fabricating threads for oil valves and gas turbine components.
Mold & Die Making: Ensuring accurate thread pitches in large molds and tooling.

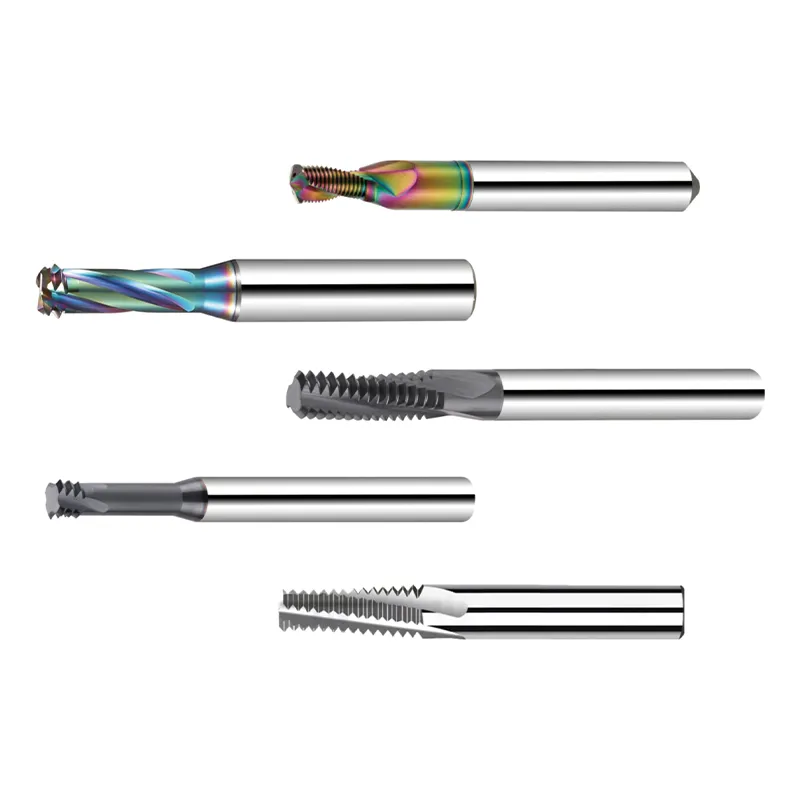

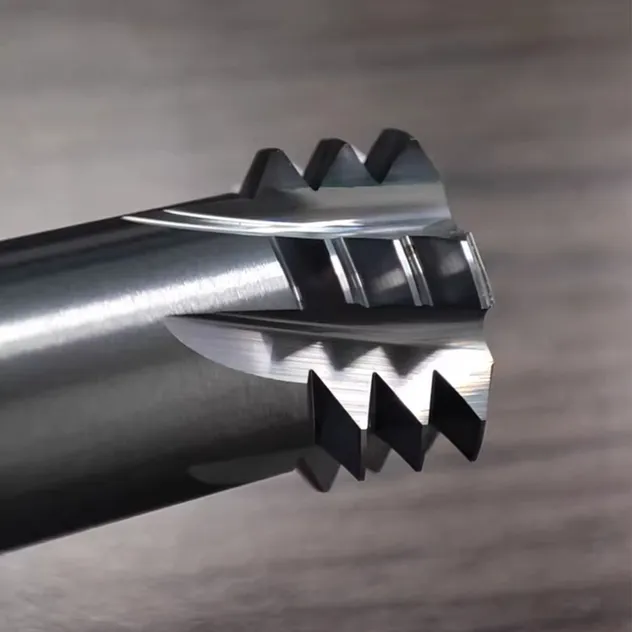

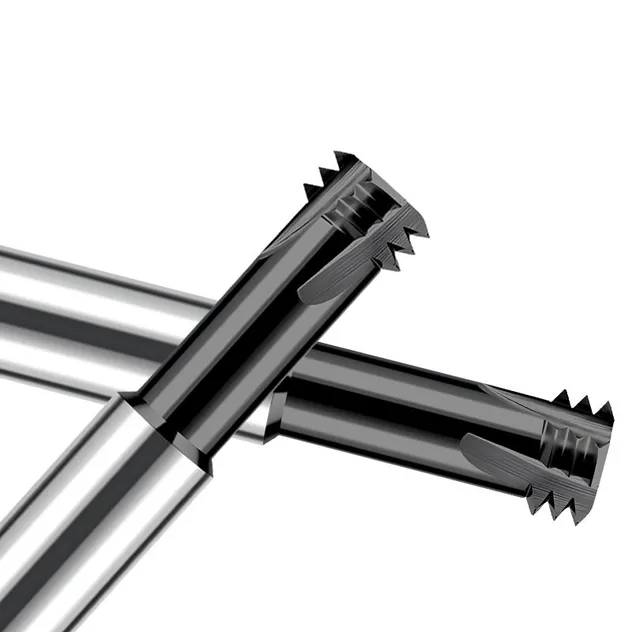

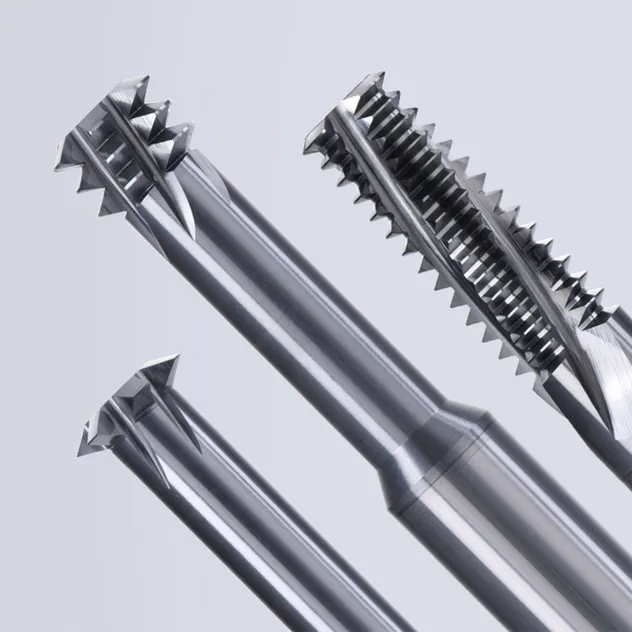

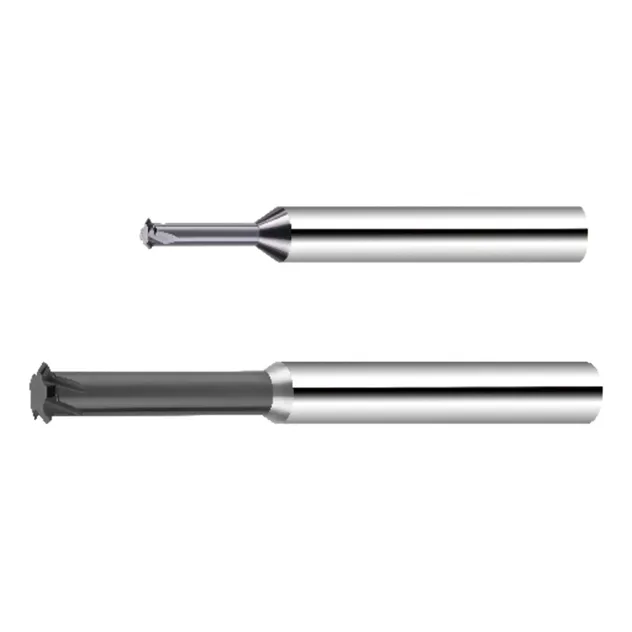

📸 Detailed Photos

We offer comprehensive OEM/ODM support for thread milling cutters, providing bespoke solutions tailored to your specific machining requirements. This covers customizations like nominal diameters, thread pitches (metric/inch), coating options, tool dimensions, and laser markings.

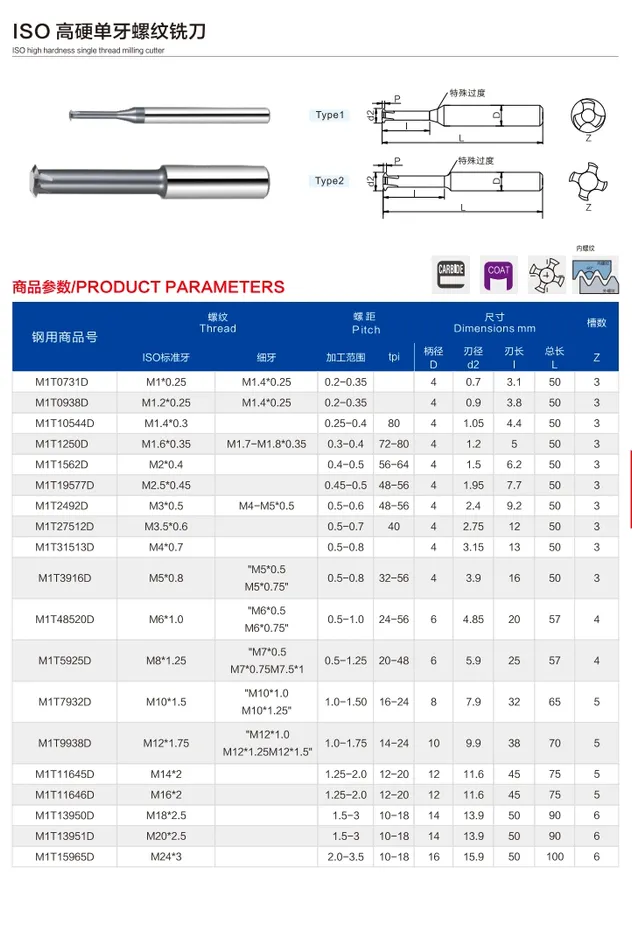

📊 Product Parameters

Feature	Description
Material	Solid Carbide (Tungsten Cobalt Alloy)
Coatings	AlTiN, TiN, TiCN, DLC, or Bright/Uncoated
Applicable Materials	Steel, Alloy Steel, Stainless Steel, Cast Iron, Aluminum, Copper
Cutting Hardness	Up to HRC 65
Thread Standards	ISO/Metric, UN/UNF, NPT, NPTF, BSP
Available Sizes	A wide range from miniature sizes (e.g., M0.8) to larger diameters
Flute Count	Typically 4 flutes for optimal performance

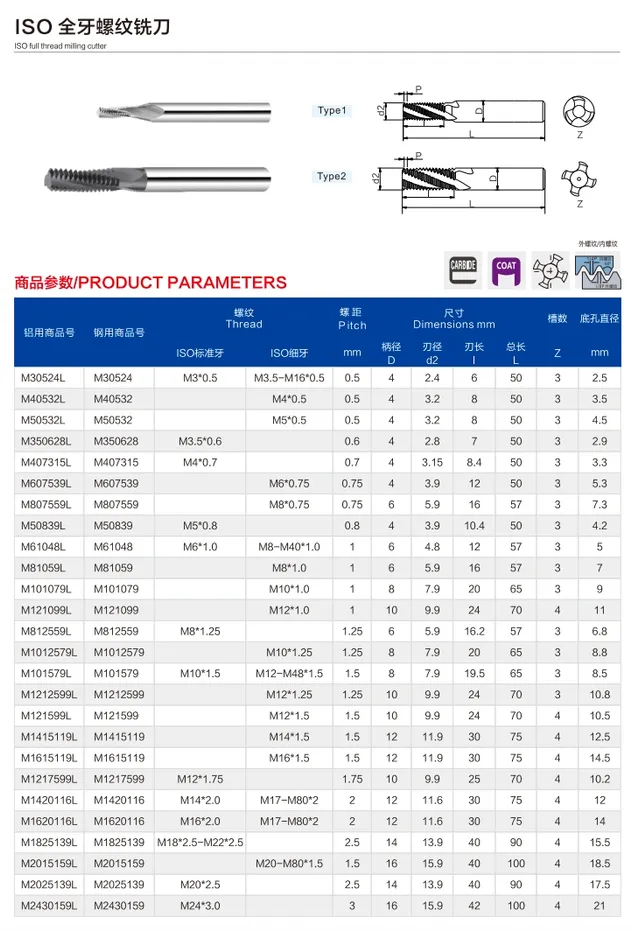

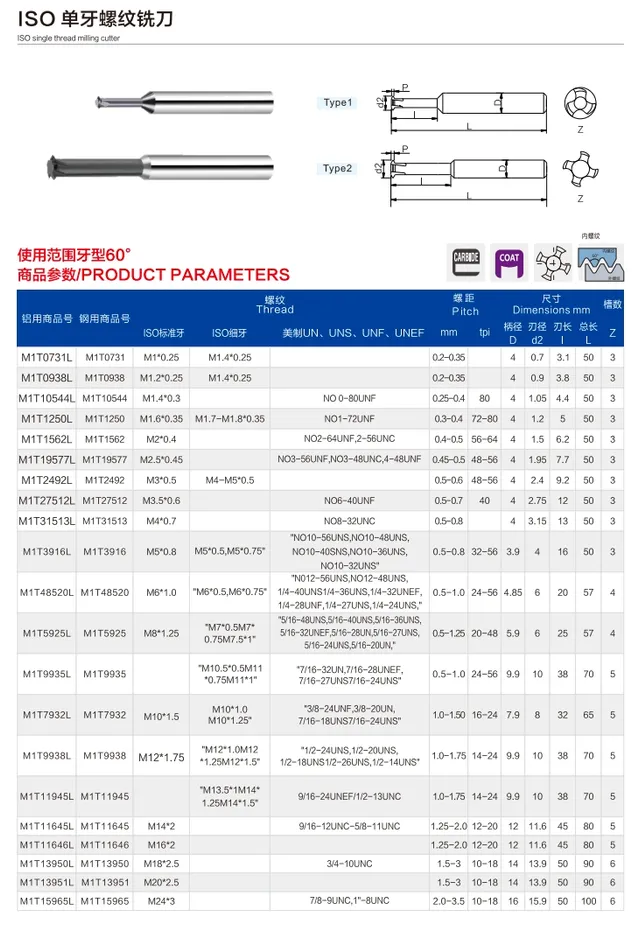

🛠️ Main Technical Parameters

Key Features & Advantages

High-Grade Material & Coating: Constructed with preferred tungsten steel rod (solid carbide) that boasts excellent rigidity and wear resistance. Handle workpieces with hardness up to 65HRC.
Versatile Specifications: Available in multiple standard sizes (e.g., M1.0×0.25 to M8.0×1.25) and customizable non-standard dimensions.
Low Cutting Force & Stability: The 4-flute design ensures smooth chip evacuation and reduced cutting force, ideal for large-sized threading.
Broad Material Compatibility: Excellently suited for machining steel, stainless steel, cast iron, aluminum alloys, and titanium alloys.

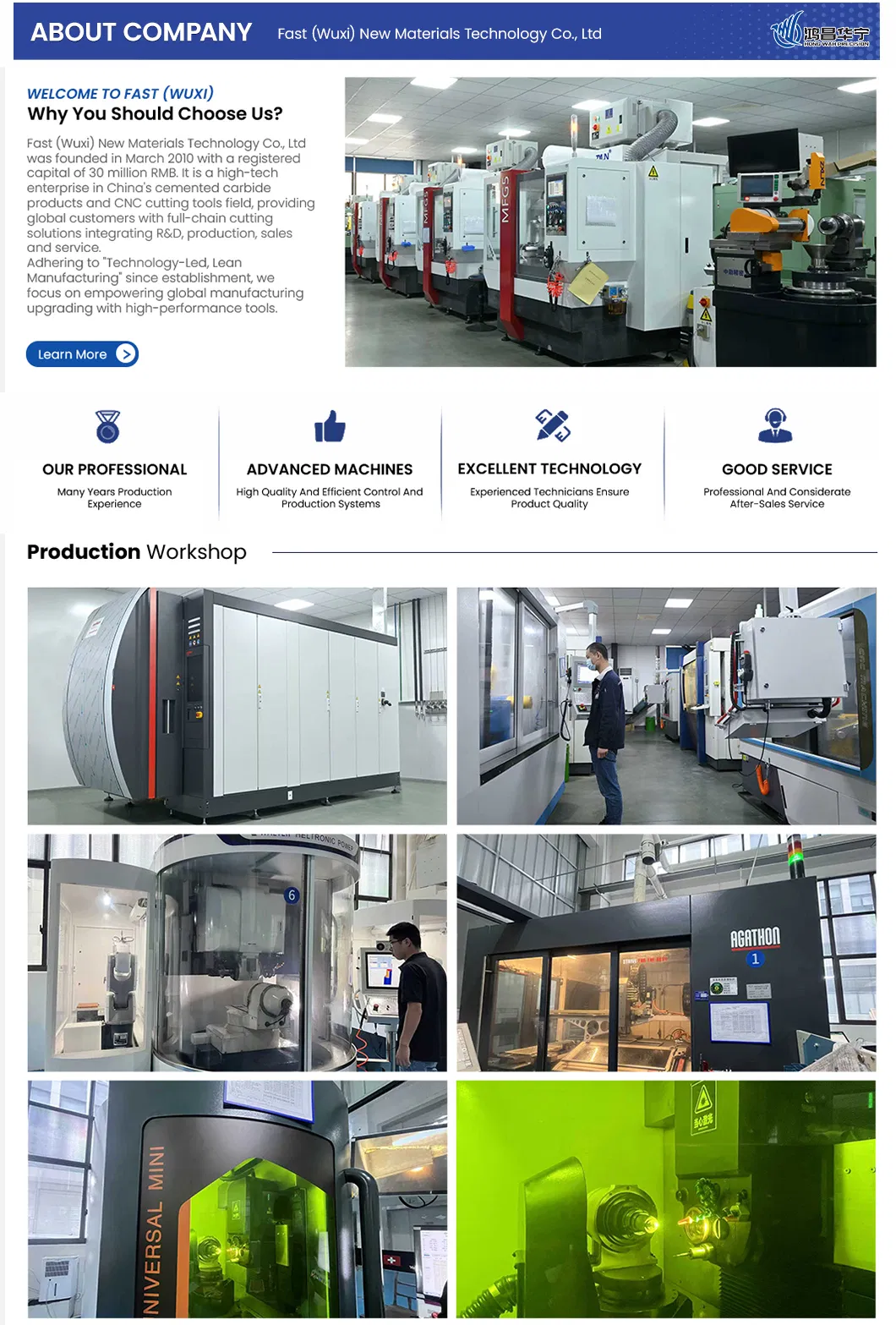

🏢 Production Facilities

📦 Packing & Delivery

❓ Frequently Asked Questions

Q1: Are you a factory or a trading company?

A: We are a factory with over 15 years of manufacturing experience. This allows us to ensure strict quality control and offer competitive pricing.

Q2: Can we use our own logo or design?

A: Yes, we provide comprehensive OEM and ODM services. We can customize products according to your specifications, including logos, packaging, and designs.

Q3: What is your MOQ?

A: For regular products, we have stock available and support small orders, even 10 pieces. For custom non-standard products, the minimum order quantity starts at 20 pieces.

Q4: How can I get some samples?

A: We can provide samples for quality testing and evaluation. A sample fee is required, which can be credited against future bulk orders.

Q5: Do you accept custom orders?

A: Absolutely. Customization is our specialty. Our engineering team will work closely with you to manufacture products that meet your exact requirements.

Q6: What materials can your thread mills process?

A: Our tools are suitable for a wide range of materials including Stainless Steel, Alloy Steel, Cast Iron, Carbon Steel, Aluminum, and Titanium Alloys.
