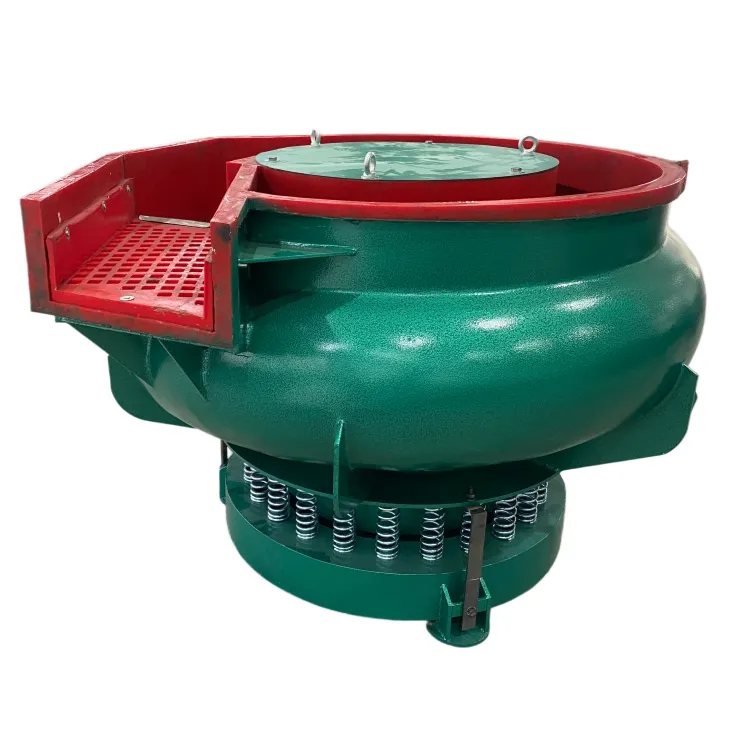

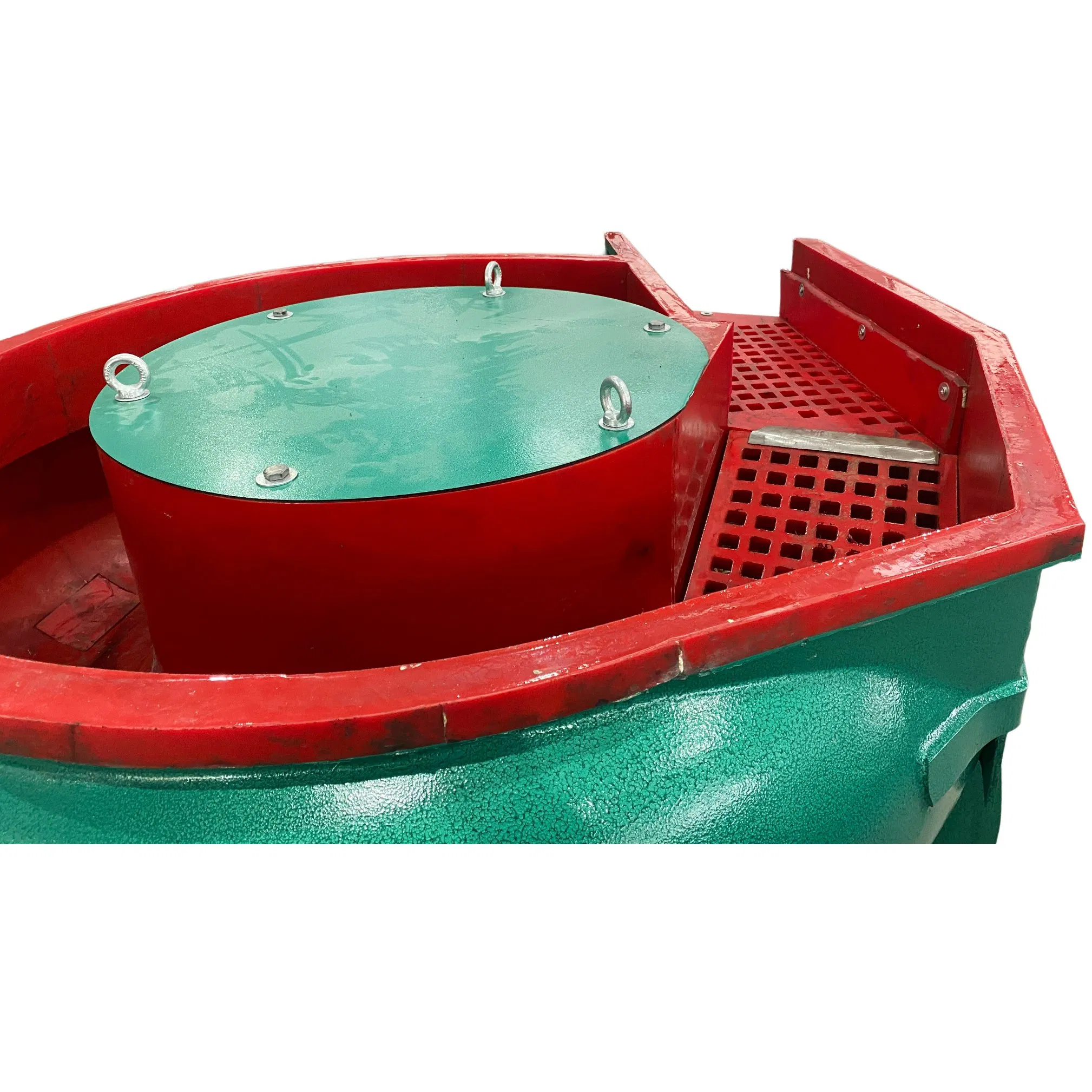

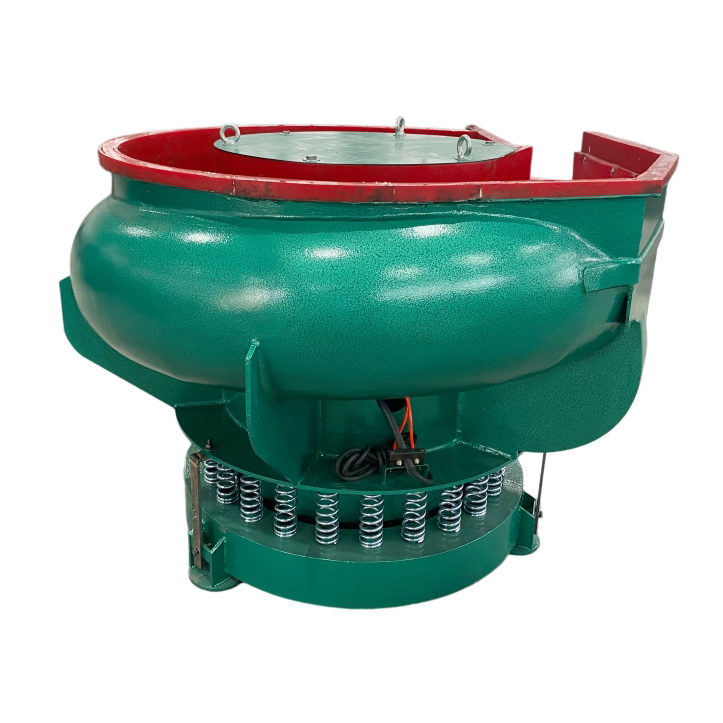

The ND-350 Metal Vibratory Polishing Machine is engineered for challenging finishing applications. This flexible vibratory bowl range is versatile, suitable for deburring, descaling, radiusing, cleaning, polishing, and general surface improvement. It is ideal for processing large quantities of mechanical parts using various tumbling media, including pebble stones and tiles.
The machine generates three-dimensional high-frequency vibrations within a ring chamber containing grinding media and workpieces. This process effectively eliminates burrs, sharp edges, rust, and oil stains, achieving a high level of surface smoothness and brightness.

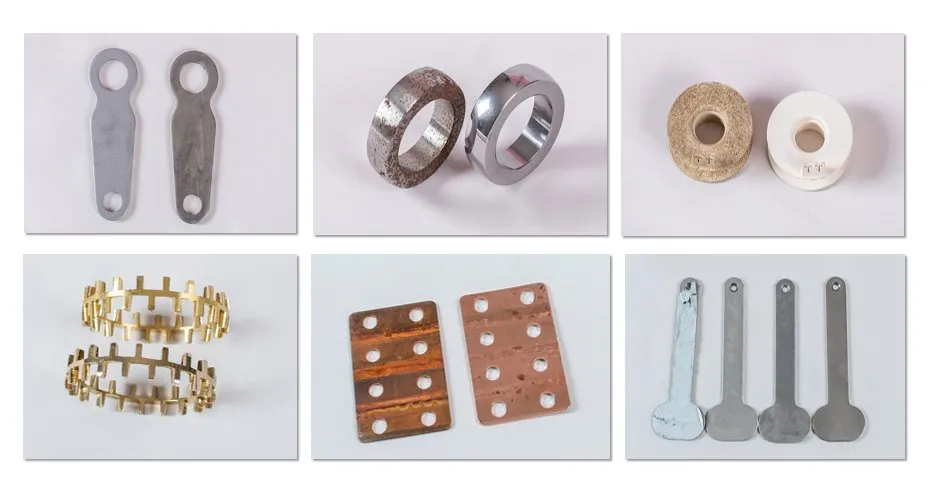

Commonly applied to surface polishing, chamfering, deburring, and brightening of various sized workpieces. It maintains original dimensional accuracy while eliminating internal stress, providing an excellent foundation for subsequent electroplating or spraying.
| ND-350B Technical Parameters | |||
|---|---|---|---|
| Model | ND-350B | Working Style | Shaking / Vibration |
| Dimensions (mm) | 1150*1100*900 | Motor Power | 5.5 Kw |
| Weight (Kg) | 450 | Rubber Lining | 6-20 mm |
| Amplitude | 0.8-6 mm | Speed | 1450 R/Min |

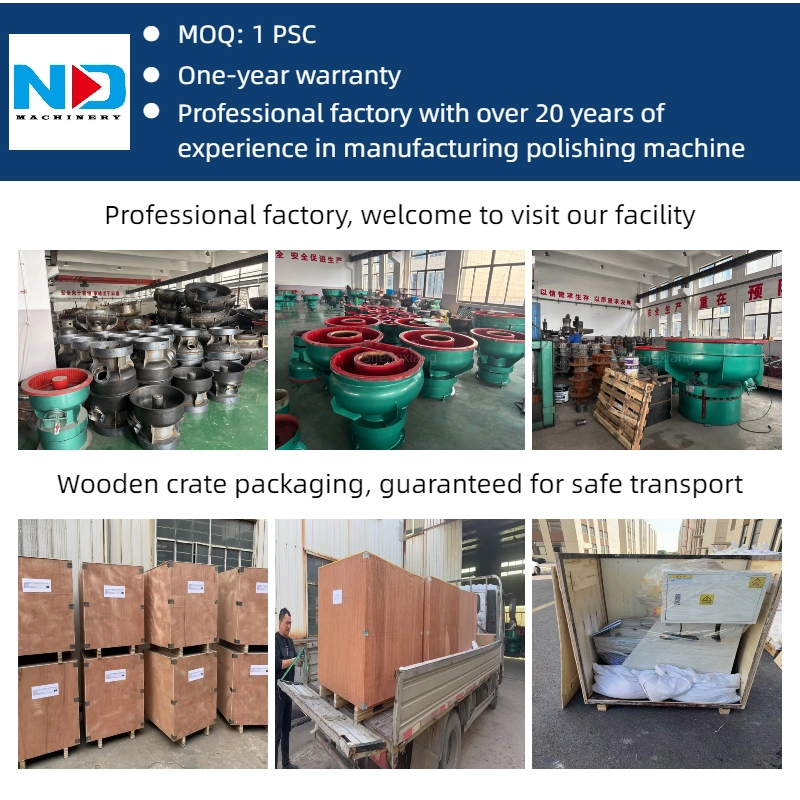

Operating since 2008, the facility specializes in advanced surface treatment solutions. Key products include vibratory finishing machines, magnetic polishing machines, and centrifugal disc systems. Every unit undergoes strict pre-production sampling and final inspections before shipment to ensure international quality standards.
