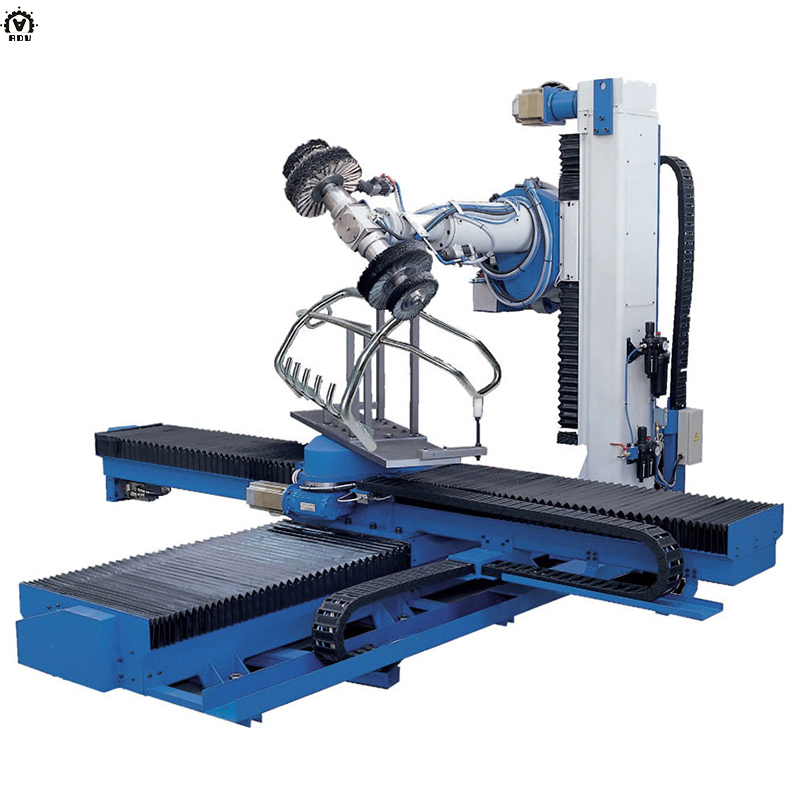

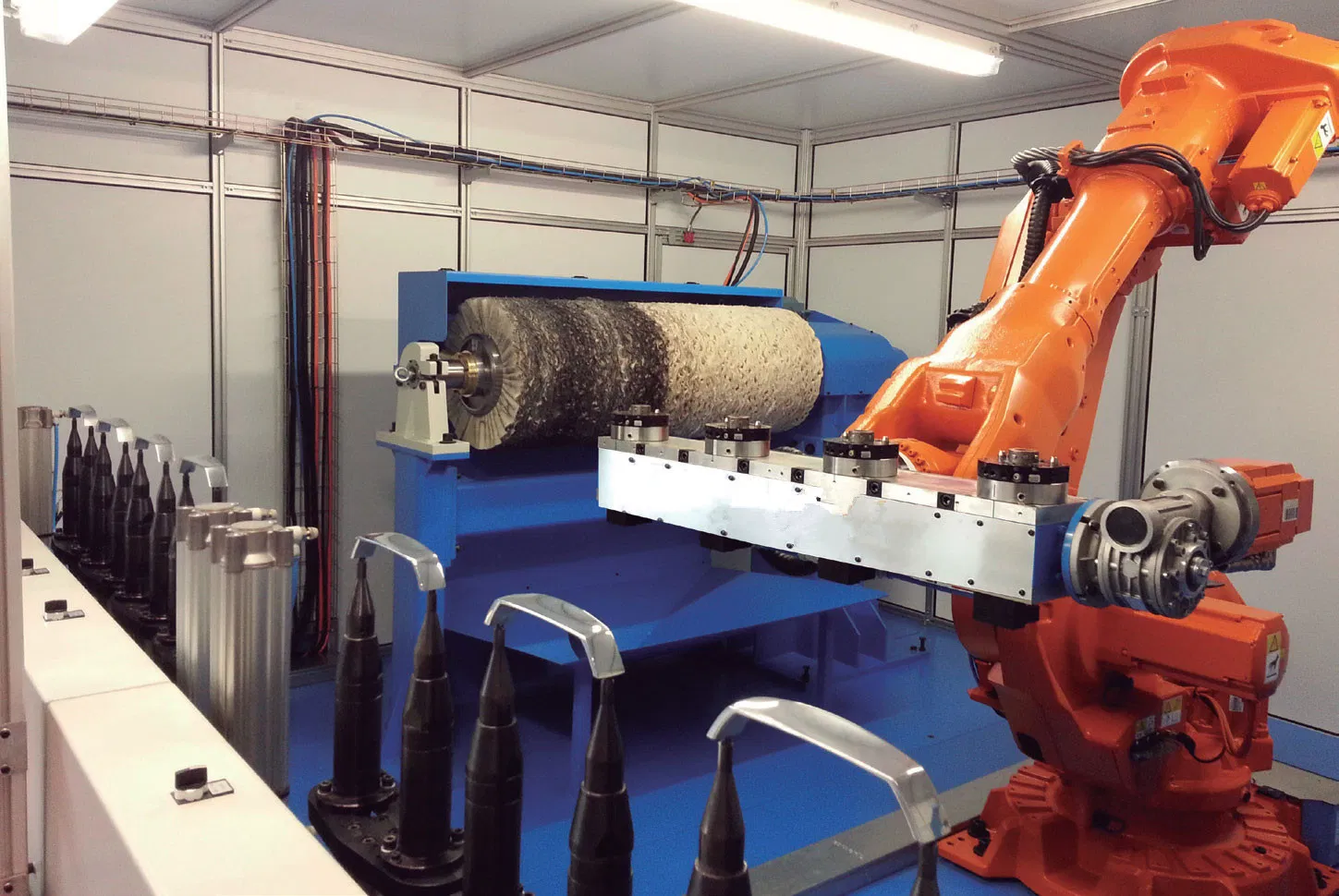

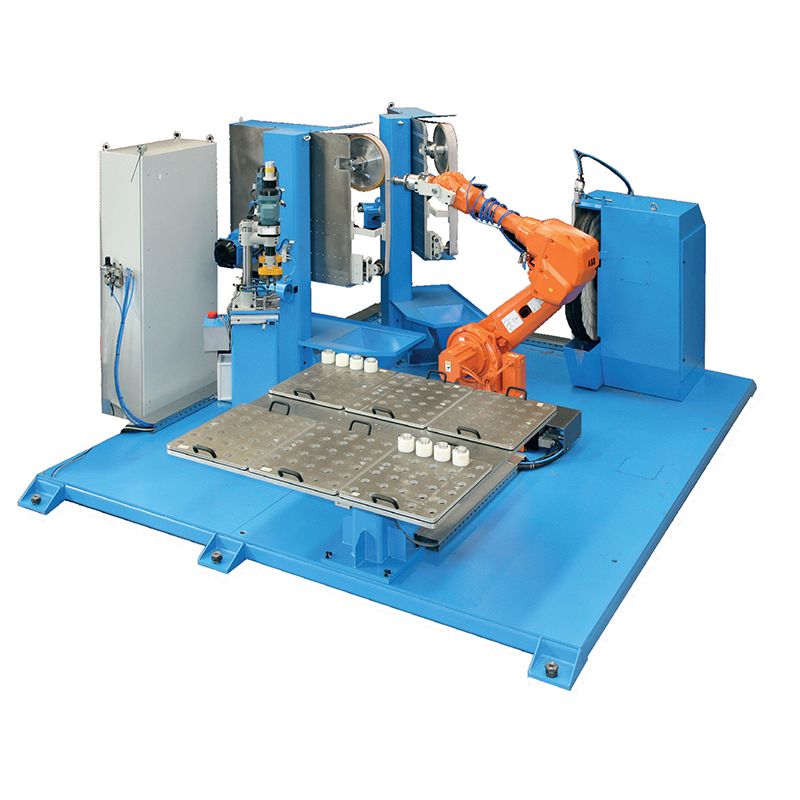

Die Casting Parts Surface Finishing Machine Automatic Robotic Grinding Polishing Buffing Machinery
Die Casting Parts Surface Finishing Machine Automatic Robotic Grinding Polishing Buffing Machinery
Die Casting Parts Surface Finishing Machine Automatic Robotic Grinding Polishing Buffing Machinery
Die Casting Parts Surface Finishing Machine Automatic Robotic Grinding Polishing Buffing Machinery
Die Casting Parts Surface Finishing Machine Automatic Robotic Grinding Polishing Buffing Machinery
1 / 5
Die Casting Parts Surface Finishing Machine Automatic Robotic Grinding Polishing Buffing Machinery
Die Casting Parts Surface Finishing Machine Automatic Robotic Grinding Polishing Buffing Machinery
Die Casting Parts Surface Finishing Machine Automatic Robotic Grinding Polishing Buffing Machinery
Die Casting Parts Surface Finishing Machine Automatic Robotic Grinding Polishing Buffing Machinery
Die Casting Parts Surface Finishing Machine Automatic Robotic Grinding Polishing Buffing Machinery

Die Casting Parts Surface Finishing Machine Automatic Robotic Grinding Polishing Buffing Machinery

Customization: Available
After-sales Service: Video Technical Support, Online Support
Warranty: 2 Years
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.:ADV 909
Certification:CE
Condition:New
Voltage:380V
Application:Metal Parts
Machine Name:Robotic Grinding Polishing Machine
Control Axis:6 Axis
Max Radius:1365 mm
Positioning Precision:±0.05mm
Production Capacity:100 Sets/Month
🚀 Product Description & Features

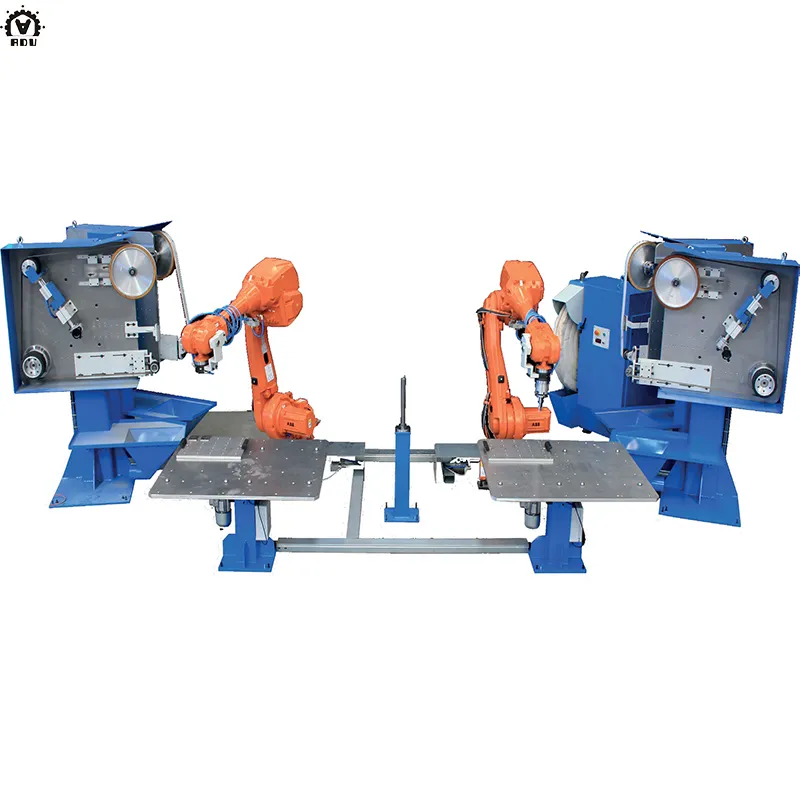

Robotic Grinding Machine Overview
Robotic Grinding Detail
  • ✔ Precision Control: Accurate and constant pressure control with high-speed response (~10ms).
  • ✔ Intelligent Design: Quick path determination using 3D-laser-scanner technology.
  • ✔ Auto Compensation: Integrated auto abrasive compensation for the buffing wheel.
  • ✔ Micro-adjustment: Pressure control mechanism allows for fine-tuning of the buffing path.
  • ✔ Customized Solutions: Options for Robot, CNC, or Motion control based on user requirements.
📸 Detailed Photos

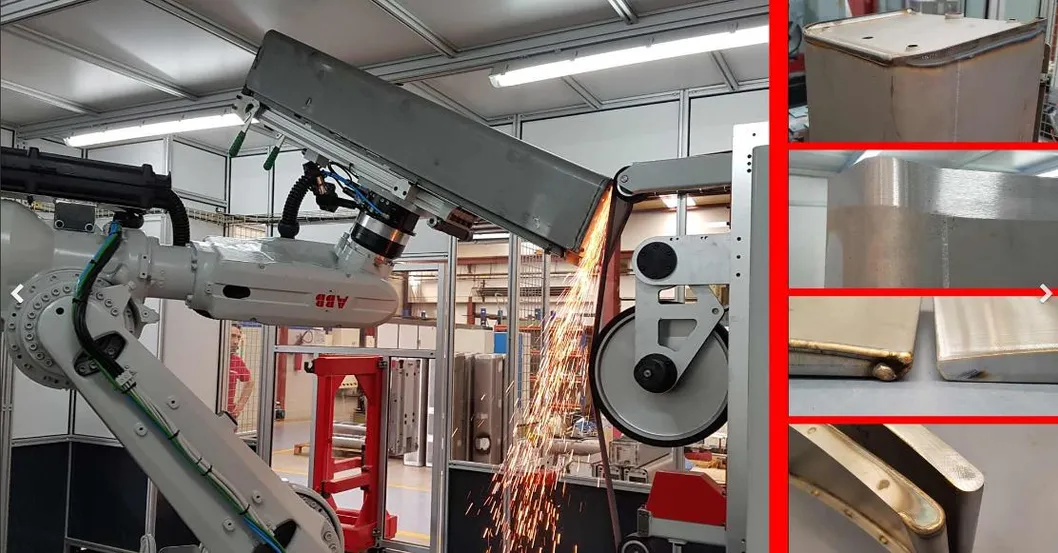

Metal Parts Surface Finishing

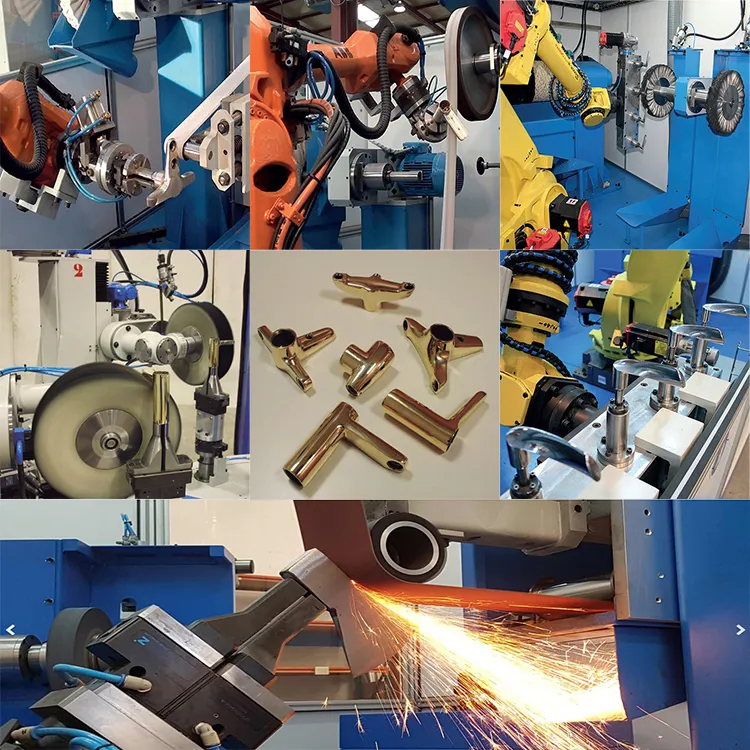

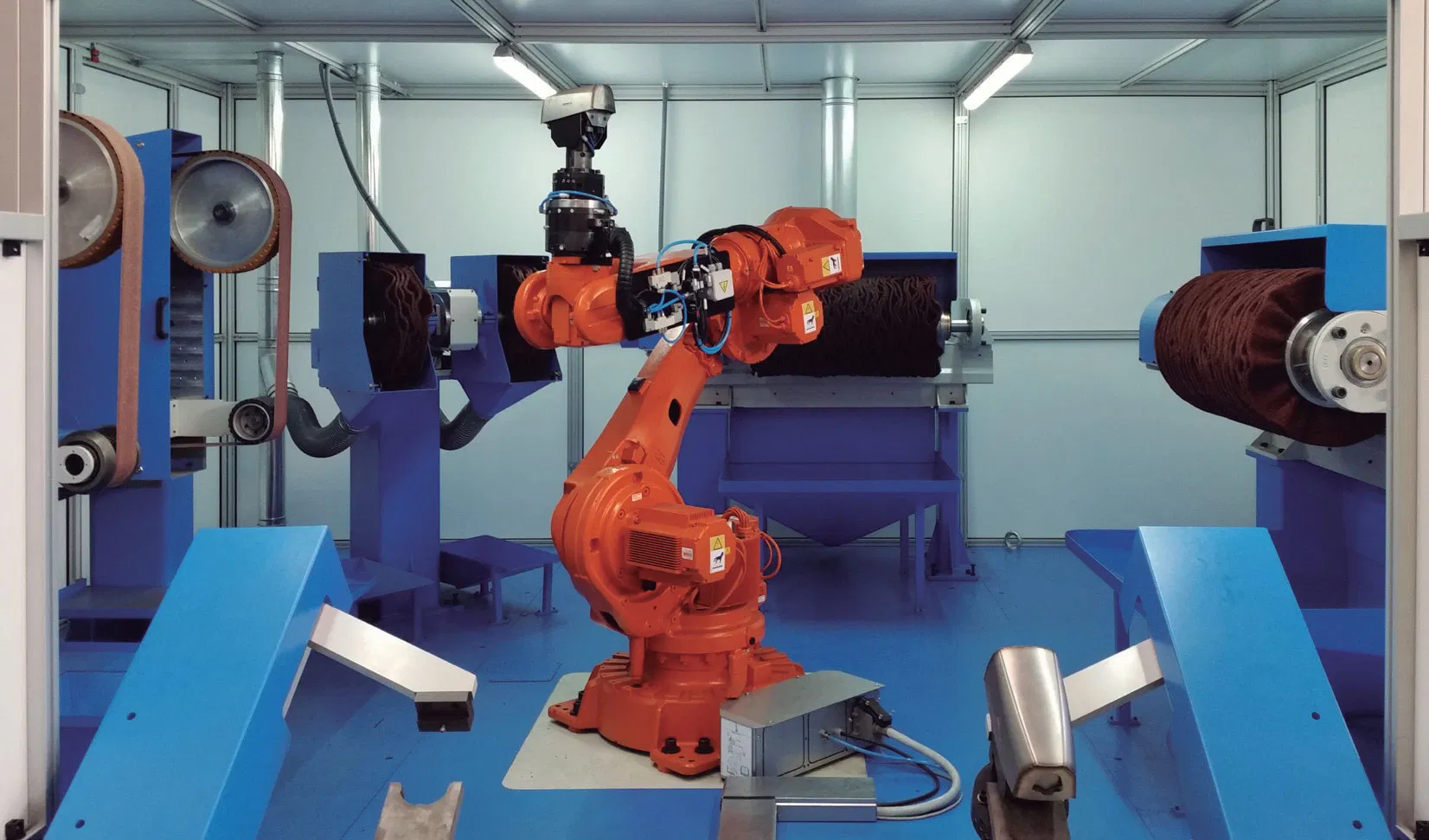

Robotic Arm Detail

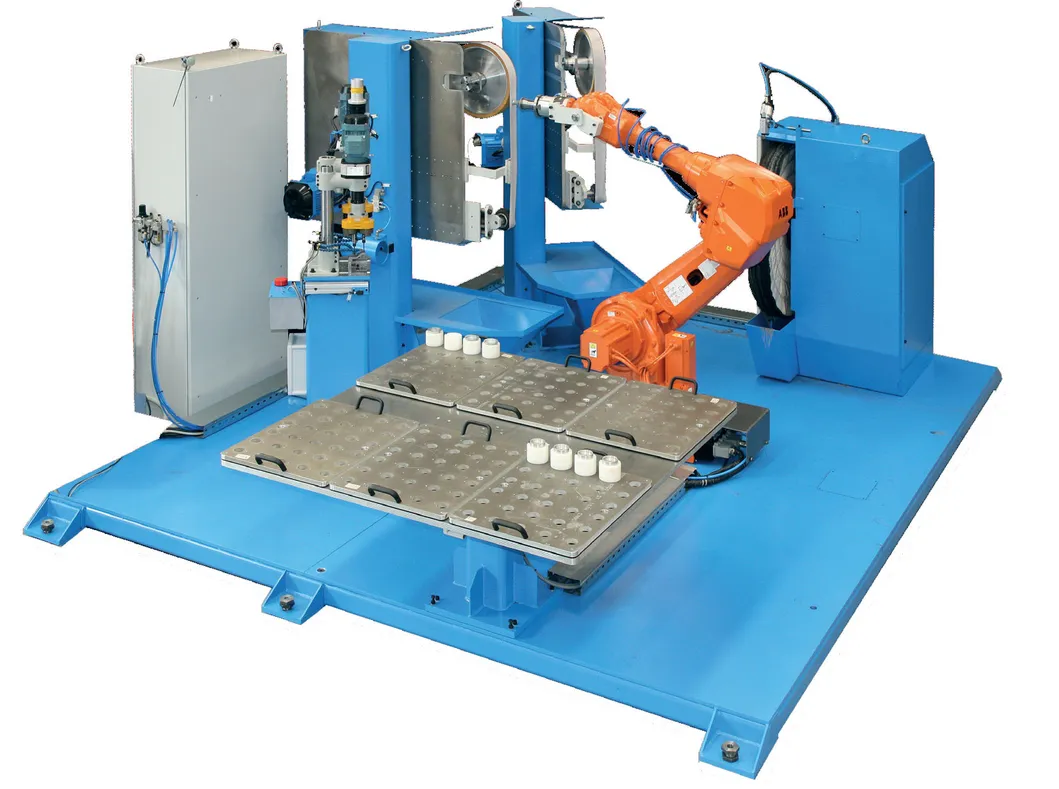

Machine Specifications Display
📊 Technical Specifications
Parameter Specification
Control Axis Quantity6 Axis
J1 / J2 / J3 Axis Speed120°/sec
J4 Axis Speed225°/sec
J5 Axis Speed145°/sec
J6 Axis Speed300°/sec
Wrist Allowable Load50 kg
Max Action Radius1365 mm
Repetitive Positioning Precision±0.05 mm
Pressure Control Range0-400N (Sensitivity: 0.2N)
Max Polishing Wheel Speed3000 RPM
🏆 Capability & Certifications

With 25 years of experience in designing and producing deburring, grinding, and polishing machinery, we prioritize quality and reliability. Our supply chain is strictly controlled to ensure high-standard production and debugging processes.

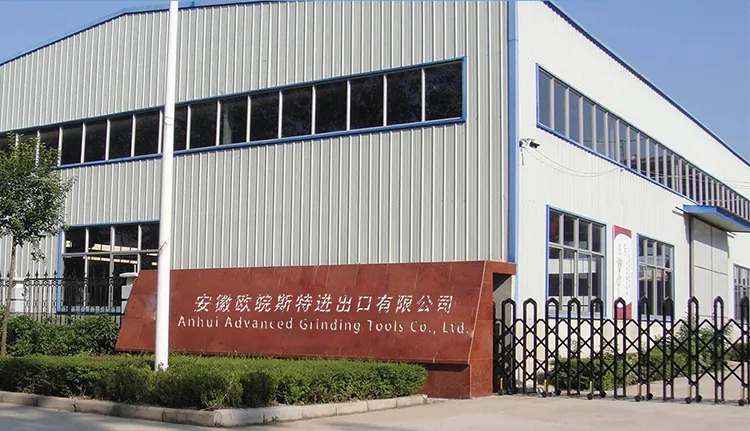

Factory Capability
Certificates and Patents

Certificates: We owned more than 50 patent rights and international certificates including CE.

🛠️ Service & Support
  • Warranty: Two years full warranty for equipment.
  • Global Support: Overseas after-sales service and annual technical instruction visits.
  • Documentation: Foundation drawings, manuals, electrical wiring diagrams, and maintenance books provided.
  • Shipping: Professional wooden packing for safe international transport.
Packaging and Shipping

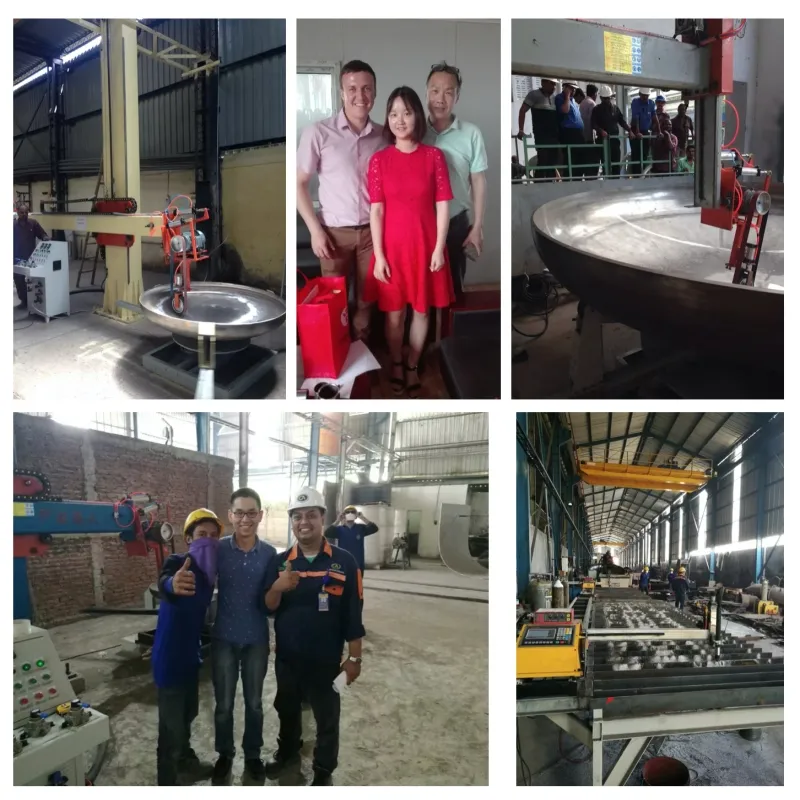

Service Photo
❓ Frequently Asked Questions (FAQ)
1. How many years of experience does the factory have?
The factory has 25 years of professional experience in designing and producing grinding and polishing machines.
2. What materials can be processed by this robotic machine?
Applicable materials include Stainless Steel, Steel, Iron, Aluminum, and Copper for various metal parts.
3. What is the precision of the repetitive positioning?
The machine offers a high repetitive positioning precision of ±0.05mm, ensuring consistent quality for mass production.
4. What is the warranty period for the equipment?
We provide a comprehensive two-year warranty along with overseas technical support and annual instructions.
5. Can the robot path be easily programmed for different shapes?
Yes, we use a 3D-laser-scanner to quickly determine and design the robot polishing path for complex shapes.
6. Does the machine handle abrasive wear automatically?
Yes, the machine features auto abrasive compensation for the buffing wheel to maintain consistent finishing results.
