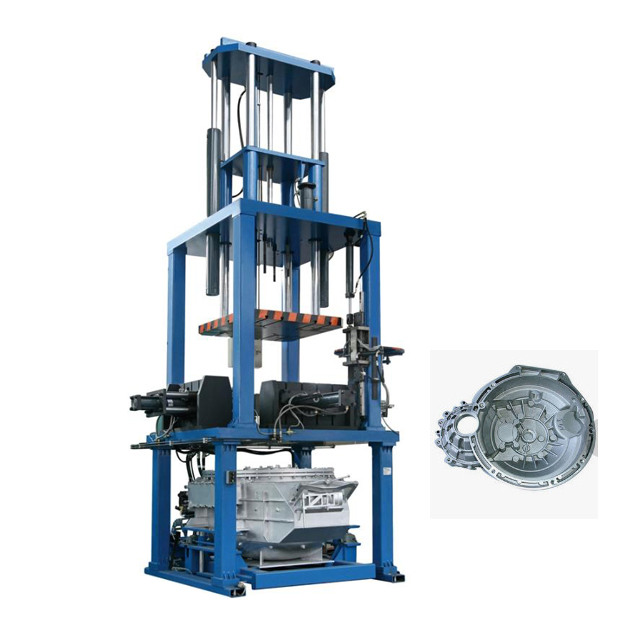

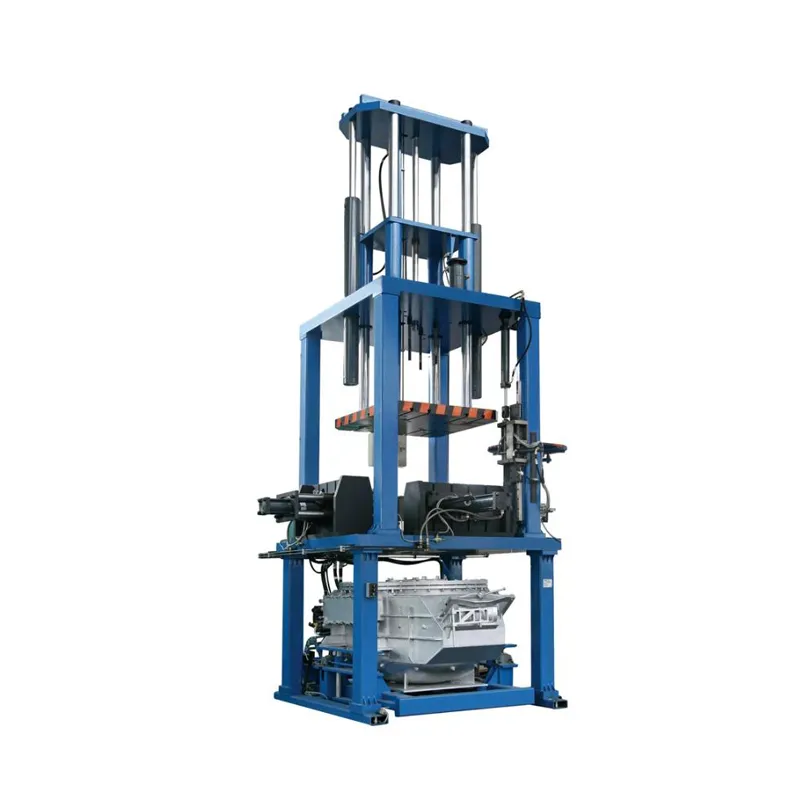

Aluminium Lpdc Machine Aluminum Cast Low Pressure Die Casting System

Customization:	Available
Control Type:	PLC
Customized:	Customized

Send Inquiry

Product Description

Overview & Basic Information

Model NO.

J455L

Condition

New

Automatic Grade

Semi-Automatic

Certification

CE, ISO9001

Type

Special Casting

Keywords

Casting Machine, Moulding Equipment

Specification

1050*750*900 working size

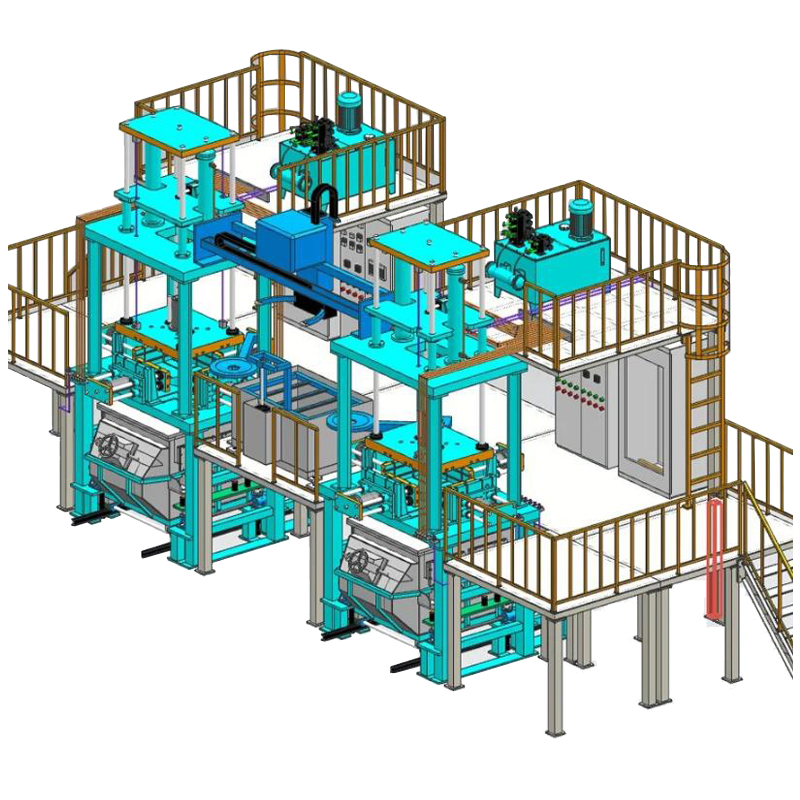

Aluminum Low Pressure Die Casting System

Low pressure casting technology is a special casting process mainly used for producing high-quality aluminum castings. The principle involves pushing the aluminum liquid from a holding furnace into a metal mold using compressed air. The liquid solidifies under precise pressure, resulting in superior mechanical parameters—often over 30% higher than traditional gravity casting.

Voltage

380V 60Hz

Power

35.5KW

Furnace Capacity

300kg

Control System

Siemens PLC+HMI

Machine Weight

15 Tons

Technical Specifications

Parameter	Unit	J453L	J455L	J458L
Machine Body
Fixed columns clearance	mm	1050*750	1400*1000	1750*1250
Distance between platen	mm	450-900	500-1350	550-1650
Upper cylinder opening force	KN	122	177	245
Upper cylinder closing force	KN	94	138	305
Holding Furnace
Capacity	KG	300	500	800
Power rate	KW	20	30	45
Pressure	Bar	Max. 1.5 bar
Hydraulic System
Motor power	KW	5.5	15	18.5
Hydraulic pressure	Bar	Min. 80 bar - max. 120 bar

Key Product Features

✔ Energy Efficiency: Fully digital servo hydraulic system, saving energy by over 50%.
✔ Reduced Loss: Nonstick pan furnace structure effectively reduces oxidation burn loss.
✔ Advanced Control: Siemens S7-1200 PLC + HMI for automatic operation and stable performance.

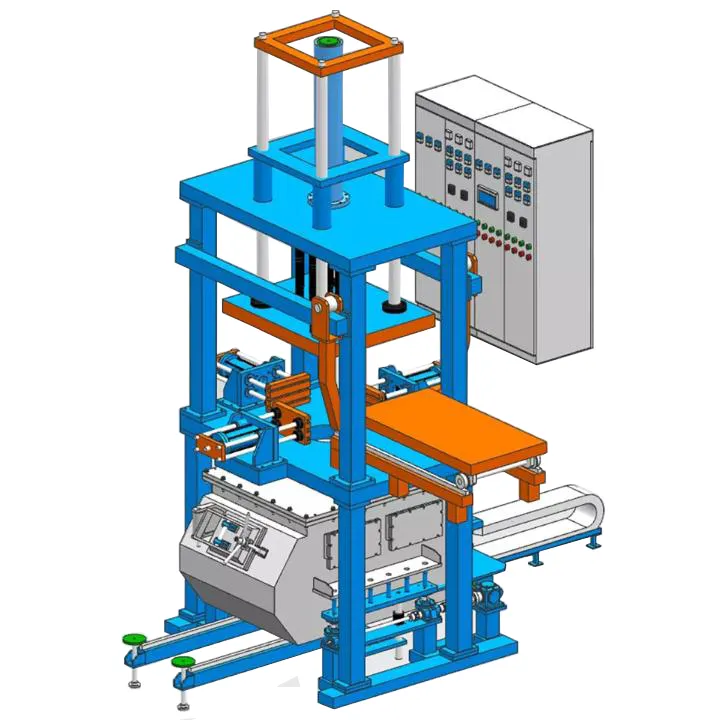

✔ High Stability: Full hydraulic drive and four guide post structure for optimal mold balance.
✔ Precision: High liquid surface pressure precision via SMC pneumatic control.

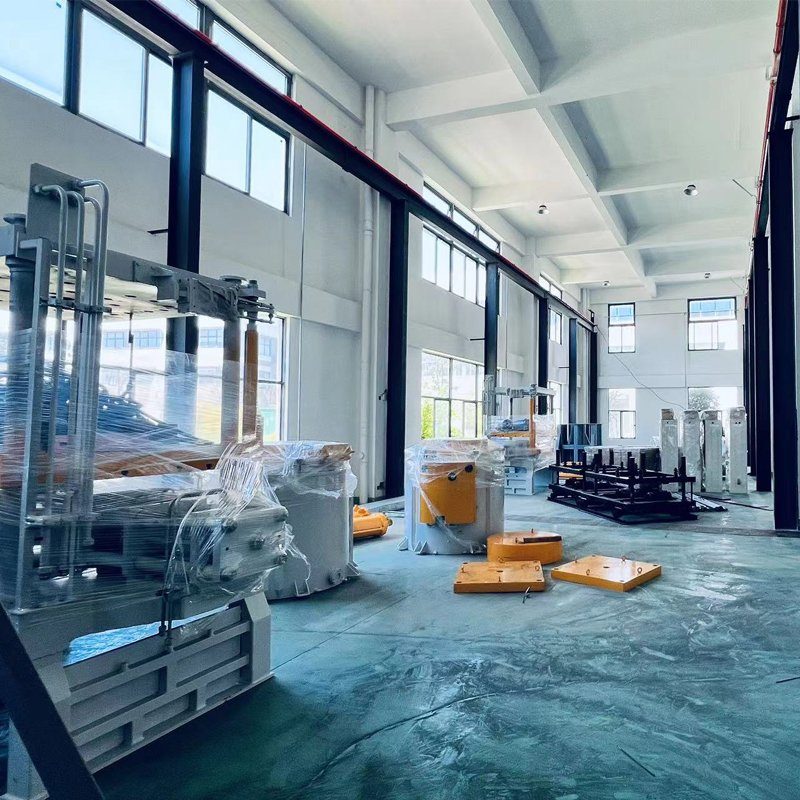

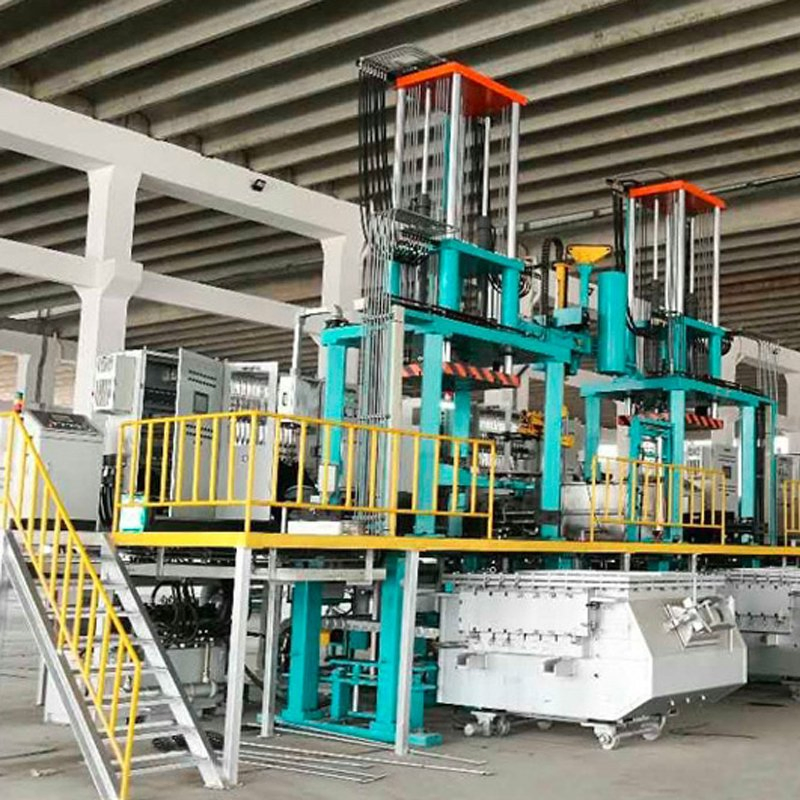

Equipment Showcase

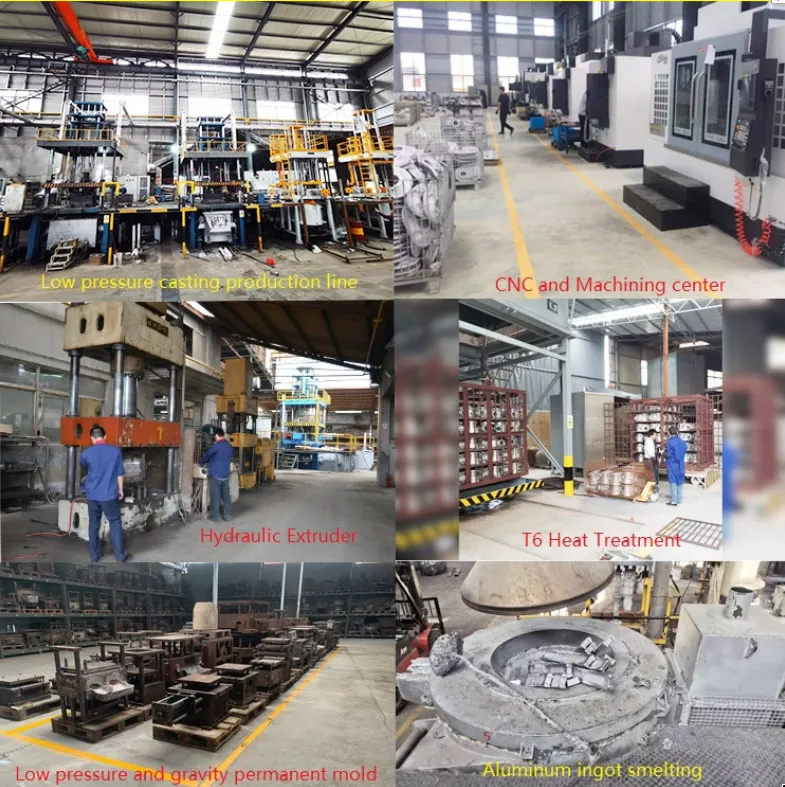

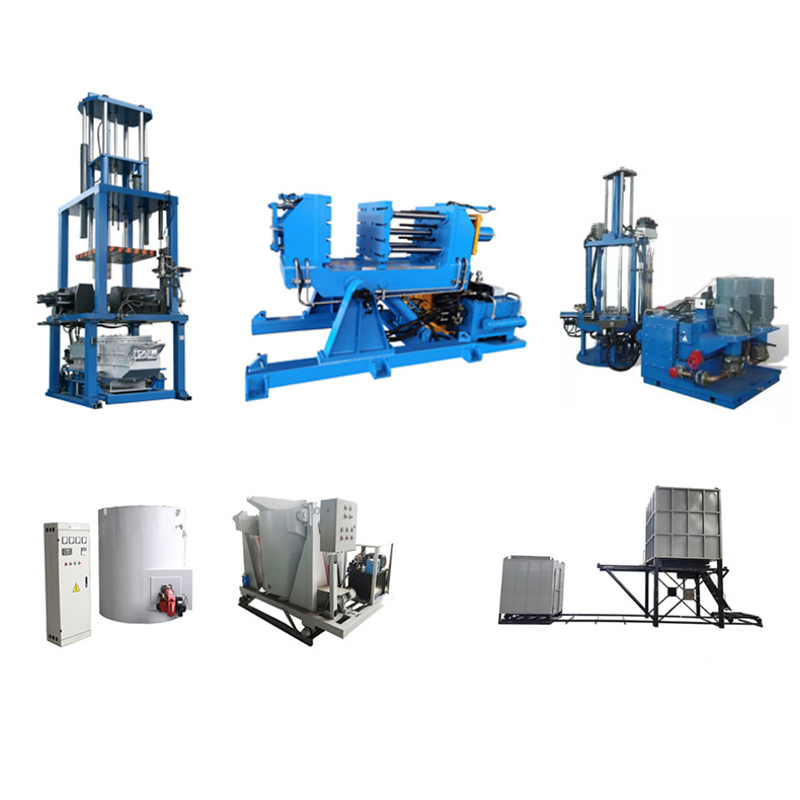

Full Turnkey Solutions

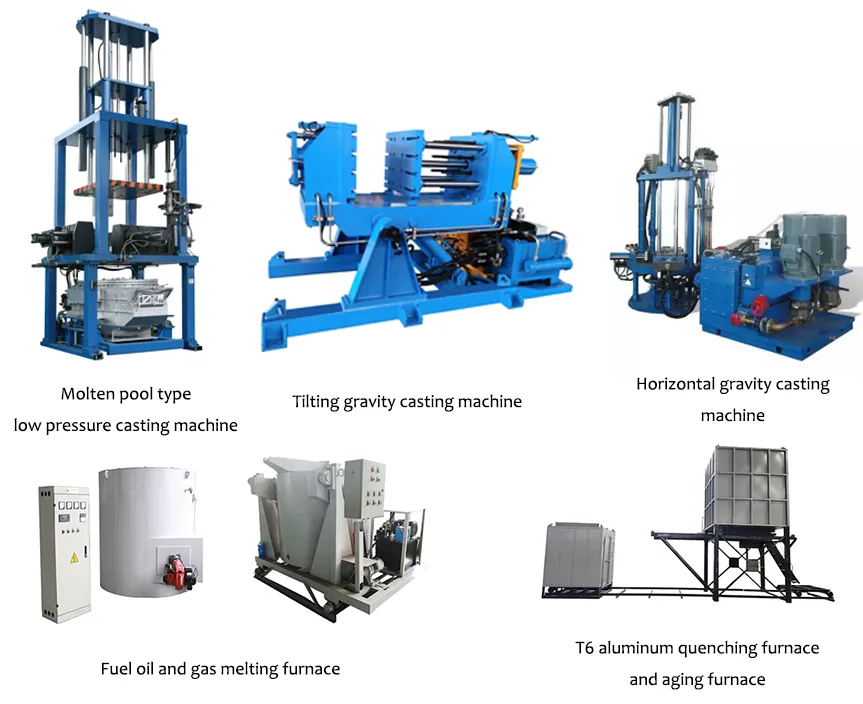

Beyond providing qualified equipment, we offer a complete suite of services including production cost budgeting, mold development, and medium-term process planning. Our goal is to ensure customers fully grasp the production process of low-pressure casting through comprehensive training. We also provide equipment for heat treatment (T4/T6) and various melting furnaces.

Frequently Asked Questions

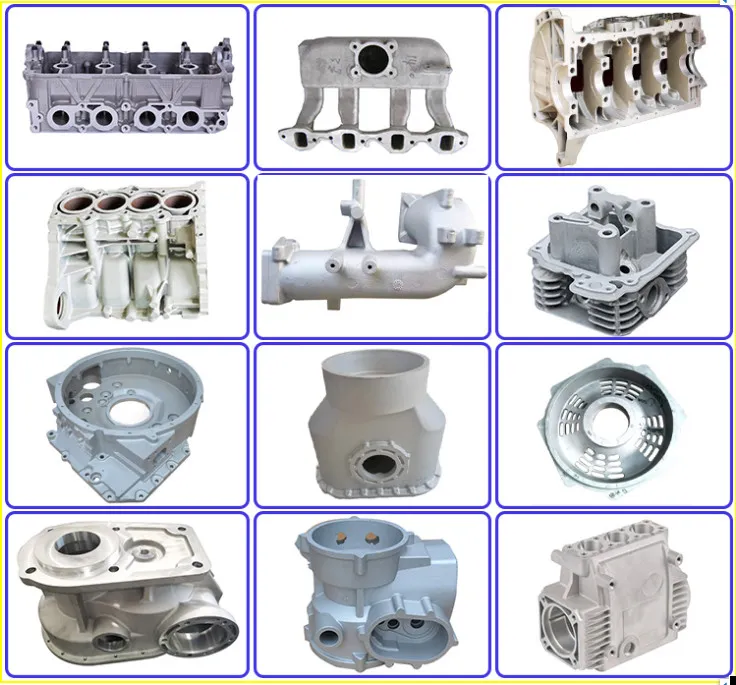

Q1: What types of products can be manufactured with this machine?

A: Theoretically, our machine can produce almost any aluminum casting with a thickness over 4mm. We recommend reviewing drawings or samples for specific confirmation.

Q2: How do you ensure the quality of the produced castings?

A: We start by analyzing your product drawings. We can produce a trial mold and provide samples for your qualification before the final machine purchase.

Q3: Is the operation system user-friendly?

A: Yes, it features a Siemens PLC with an HMI (Human Machine Interface) for automatic operation, ensuring a stable and easy-to-manage production cycle.

Q4: What is the typical lead time for delivery?

A: The standard delivery time is commonly within 60 days from the order confirmation.

Q5: What post-warranty services are available?

A: We provide video technical support, online support, spare parts availability, and field maintenance or repair services even after the warranty period.

Q6: Are there any specific energy-saving advantages?

A: Yes, our fully digital servo hydraulic system can save over 50% in energy consumption compared to traditional systems.
