Customization: Available
Control Type: PLC
Customized: Customized
Send Inquiry

Product Description

Basic Information
Model NO.
J452L
Condition
New
Automatic Grade
Semi-Automatic
Certification
CE, ISO9001
Type
Special Casting
Application
High Quality Aluminum Casting
Control System
Siemens PLC+HMI
Hydraulic System
Servo or Regular Motor
Oil Pump
Gear Pump
Cooling System
Water / Air / Mixed
Specification
800kg holding furnace
HS Code
8454309000
Low Pressure Die Casting (LPDC) Machine

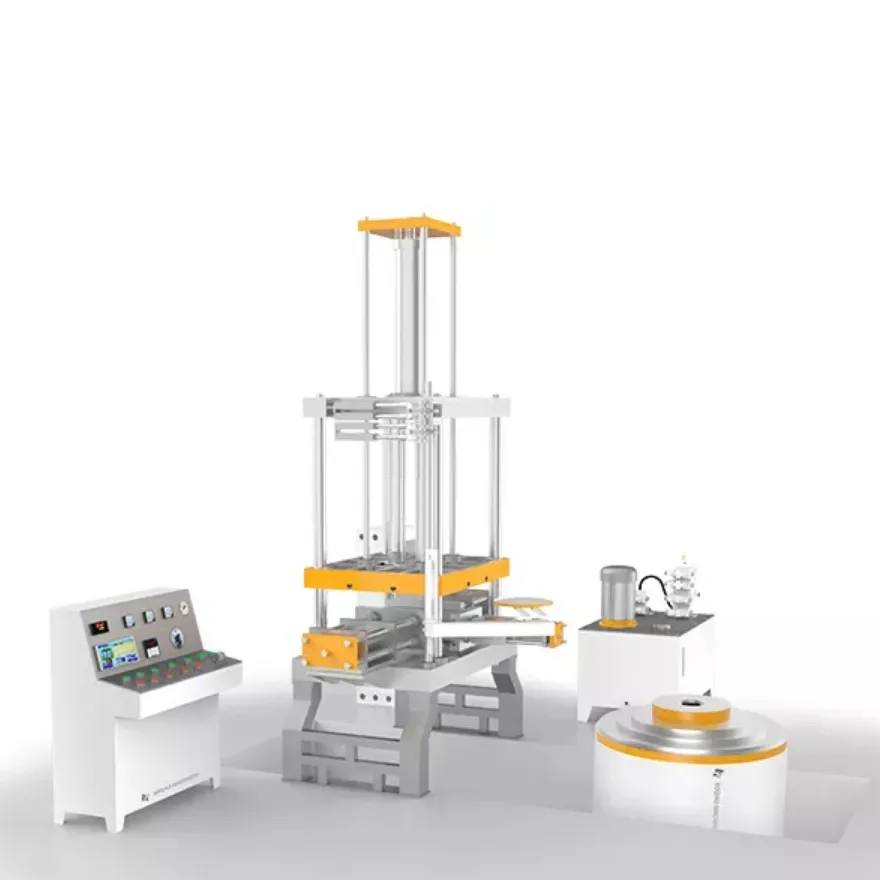

LPDC Machine Overview

Key Technical Advantages:

🔹 Non-stick aluminum structure to reduce oxidation burn
🔹 Full digital servo or variable frequency hydraulic system (Energy saving >50%)
🔹 90° installation mold (reverse installation)
🔹 Ultra-high pressure accuracy and productivity
🔹 Fully automatic cycle and hydraulic power drive
🔹 High rigidity, strength, and reliability

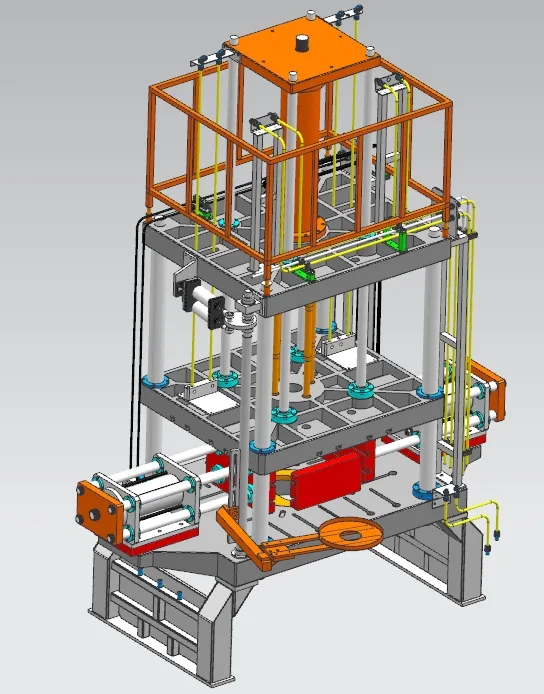

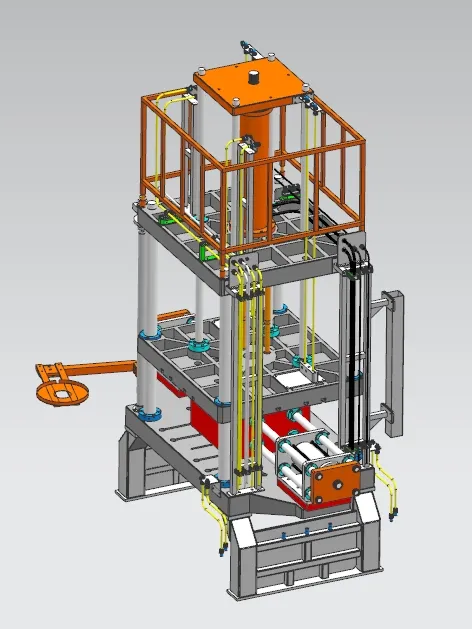

Machine Detail 1 Machine Detail 2
Technical Parameters
Parameter Item Fixed Type Mobile Type
Holding Furnace Capacity500kg500kg
Table Size1400*1400mm1500*1500mm
Moving Template Size800*800mm800*800mm
Moving Template Stroke1000mm1000mm
Distance (Template to Workbench)450-1450mm450-1450mm
Mold Cooling Lines10 lines10 lines
Detailed Specifications by Model

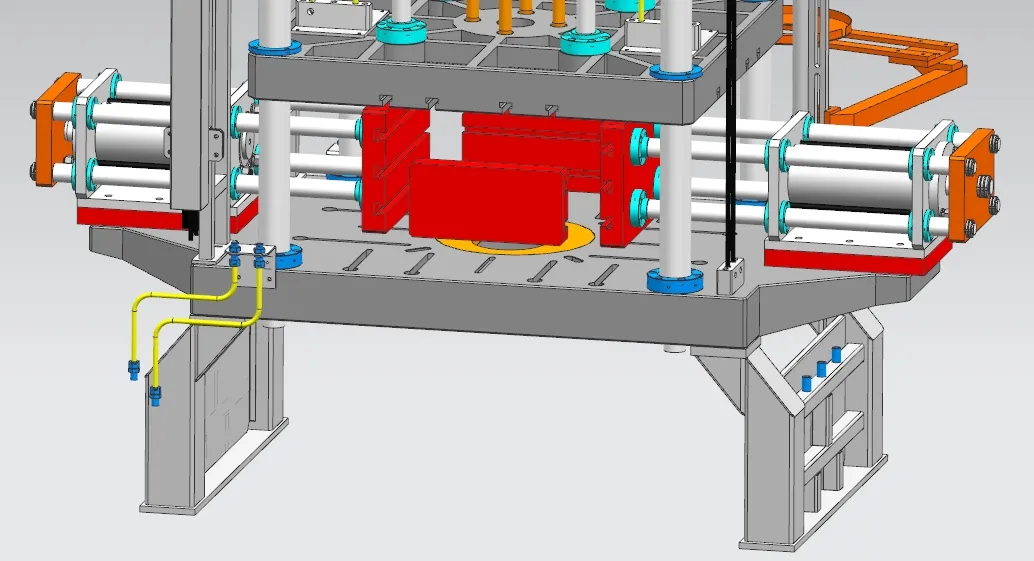

Specification Chart
Parameter Unit J452L J455L J458L
Fixed Columns Clearancemm1050*7501400*10001750*1250
Upper Cylinder Opening ForceKN122177245
Furnace CapacityKG300500800
Motor PowerKW5.51518.5
Hydraulic PressureBarMin. 80 - Max. 120
Turnkey Casting Solutions

We provide comprehensive solutions for low-pressure casting, including upfront cost budgeting, mold development, and complete production process setup.

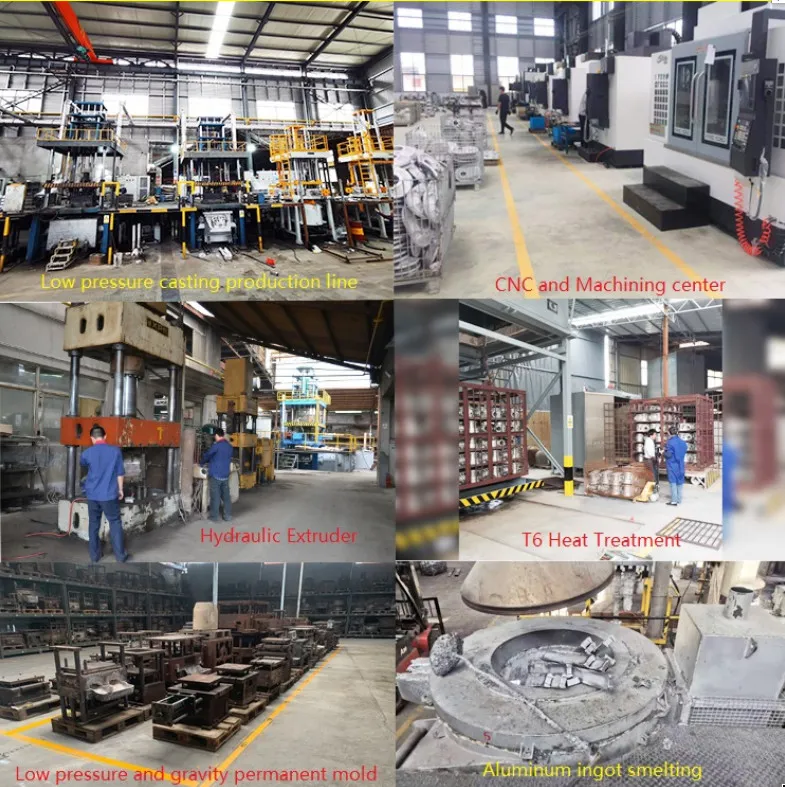

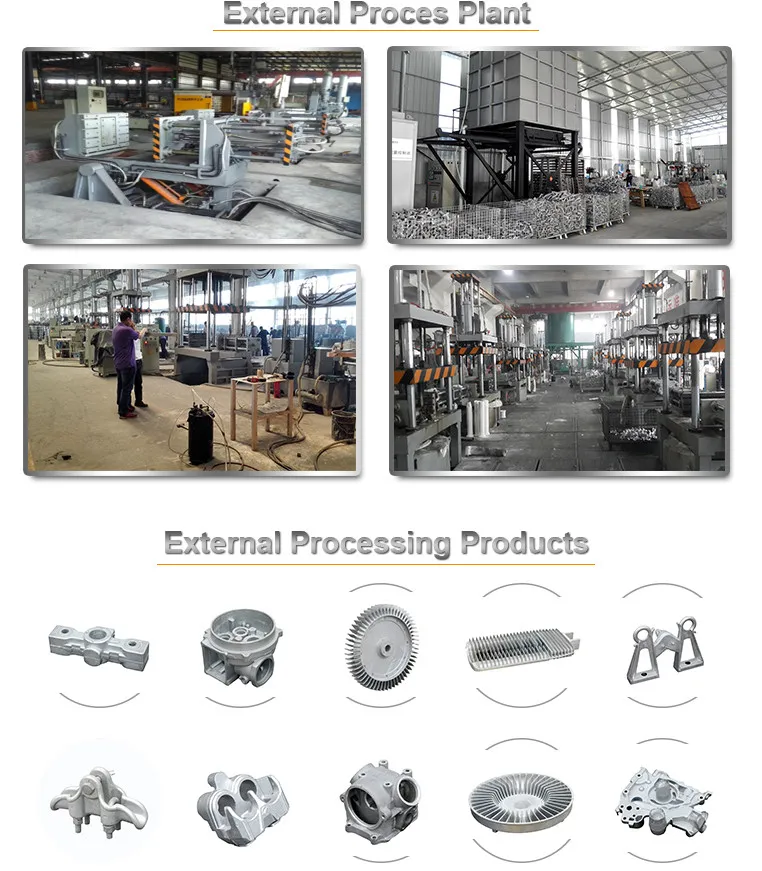

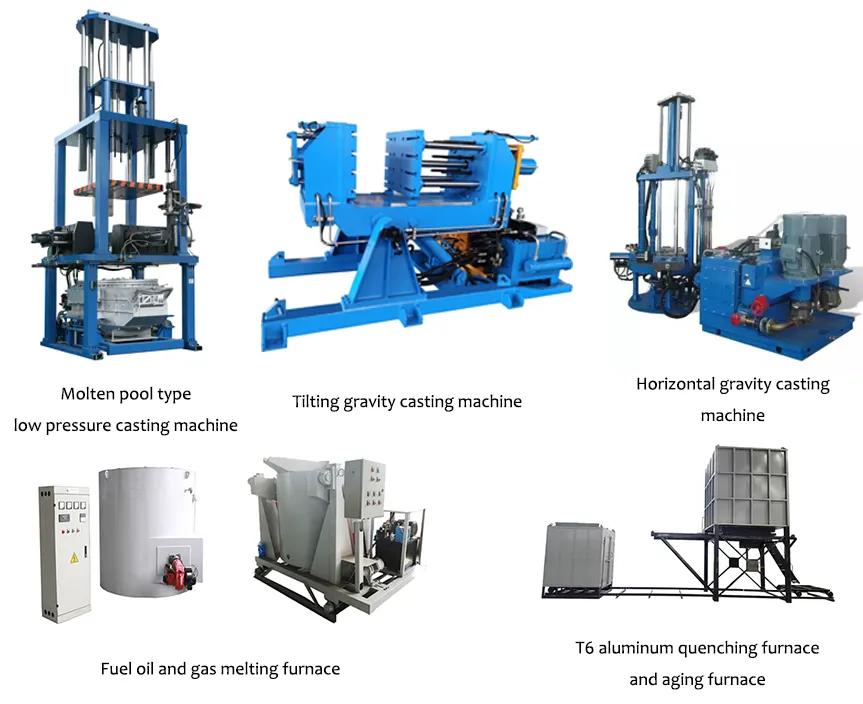

Related Equipment 1 Related Equipment 2 Related Equipment 3

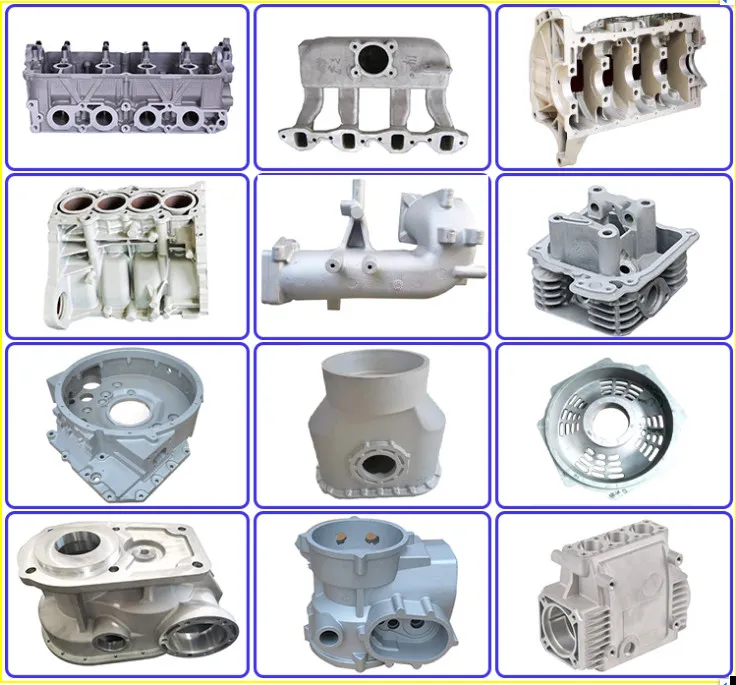

Process Flow Final Products

Additionally, we supply aluminum alloy heat treatment equipment such as T4 aging furnaces and T6 vertical quenching furnaces to ensure the highest product quality.

Heat Treatment 1 Heat Treatment 2
Frequently Asked Questions
💡 What is the benefit of the servo hydraulic system?
The full digital servo hydraulic system provides high-precision control and significantly reduces energy consumption by more than 50% compared to traditional systems.
💡 What types of aluminum casting are these machines suitable for?
These machines are designed for high-quality special casting applications, particularly for aluminum alloy parts requiring high rigidity and reliability.
💡 What control systems are integrated into the machine?
The machines utilize world-class Siemens PLC and HMI units for semi-automatic and fully automatic cycle operations, ensuring high efficiency and stability.
💡 What is the maximum holding furnace capacity available?
Depending on the model, we offer holding furnaces with capacities ranging from 300kg to 800kg to suit different production scales.
💡 Do you provide post-installation support?
Yes, we provide complete turnkey services including installation, adjustment, operator training, and lifetime technical maintenance support.
💡 Can the machine handle mold cooling?
Absolutely. Our LPDC machines come equipped with up to 10 cooling lines, supporting water, air, or mixed cooling methods to optimize cycle times.
