✓ Siemens PLC+HMI semi-automatic operation, ensuring high efficiency and reduced labor intensity.
✓ Comprehensive supply solution and turnkey project services tailored to client needs.
✓ Full installation and meticulous adjustment completed before delivery to guarantee qualified production.
✓ Exceptional after-sales support including free parts and professional maintenance services.

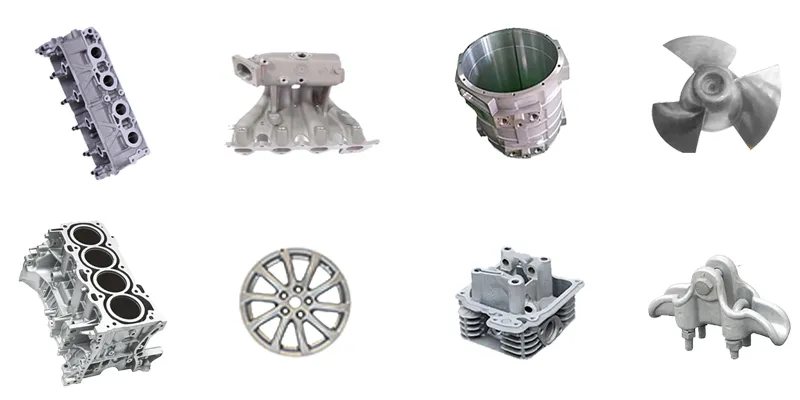

Application Industry
Equipment Technology Specifications
Parameter
Unit
J452L
J455L
J458L
Machine Body
Fixed columns clearance
mm
1050*750
1400*1000
1750*1250
Distance between mobile and fixed platen
mm
450-900
500-1350
550-1800
Side cylinder stroke
mm
250
300
450
Opening force of the upper cylinder
KN
122
177
245
Closing force of the upper cylinder
KN
94
138
305
Ejection force
KN
122
177
305
Holding Furnace
Furnace type
-
Crucible
Crucible or Refractory
Capacity
KG
300
500
800
Power rate
KW
20
30
40
Temperature control accuracy
±ºC
2
2-5
Furnace pressure
Bar
Max. 1.5 bar
Hydraulic & Control System
Motor type
-
Optional (Regular or Servo)
Motor power rate
KW
5.5
15
18.5
PLC, HMI unit
-
Siemens
Operation method
-
Automatic / Semi-Auto

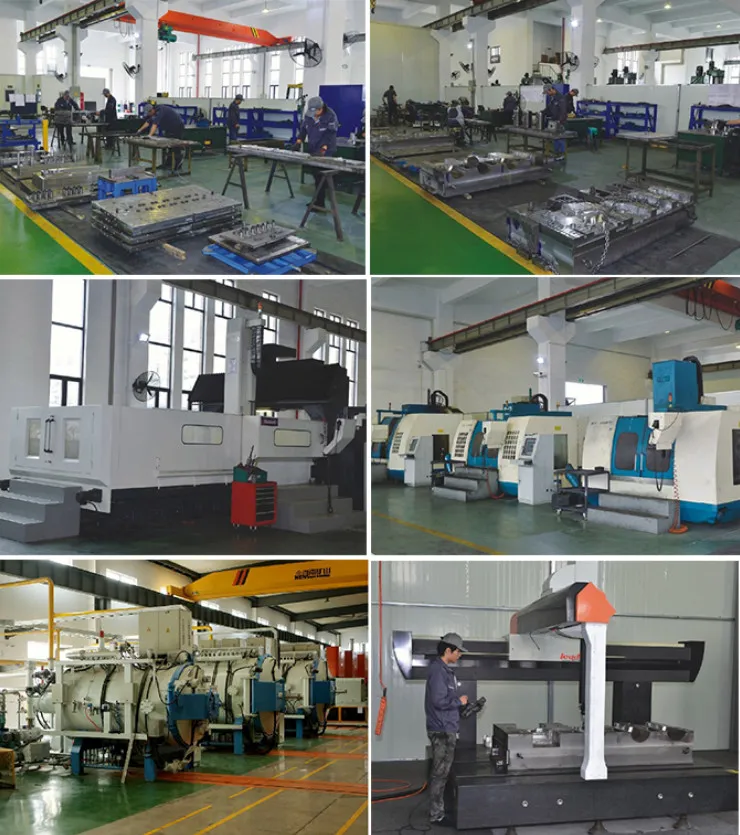

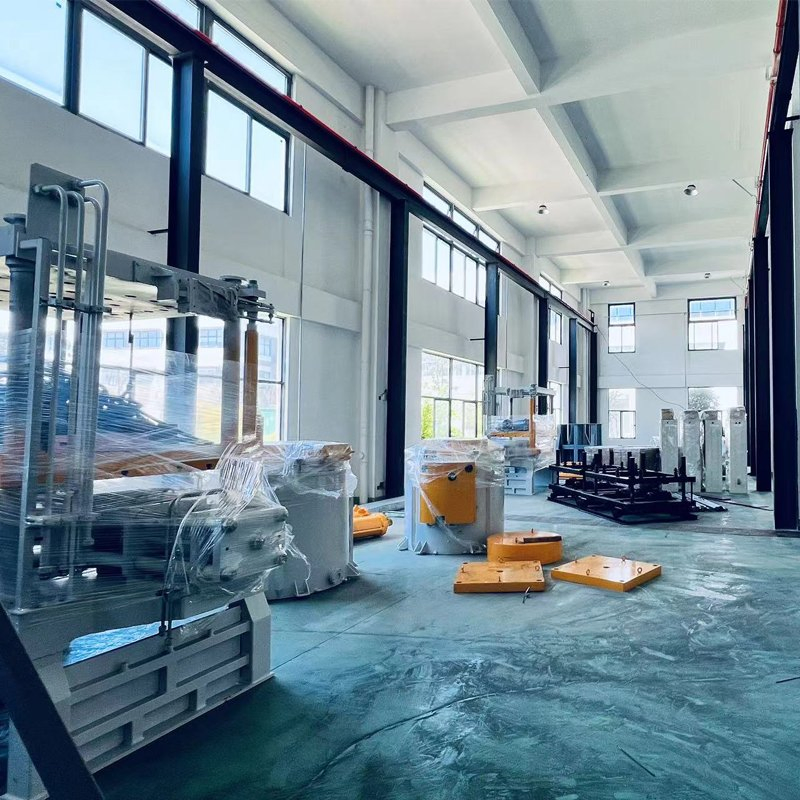

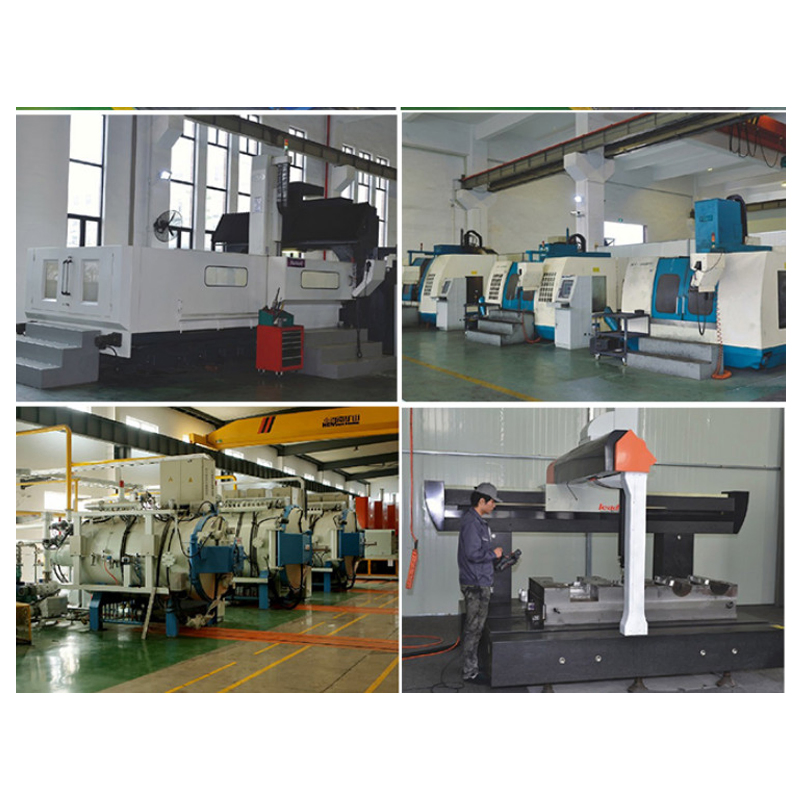

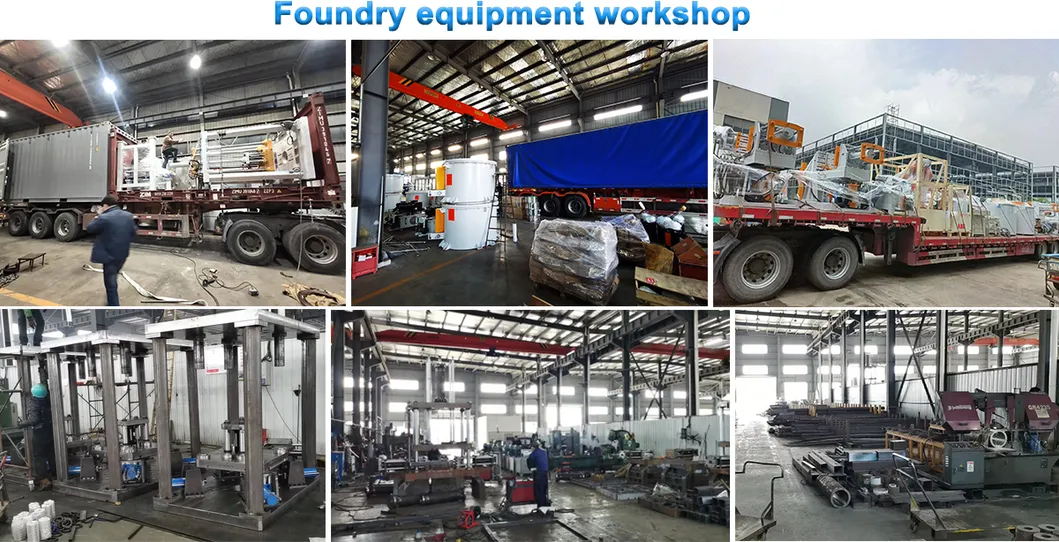

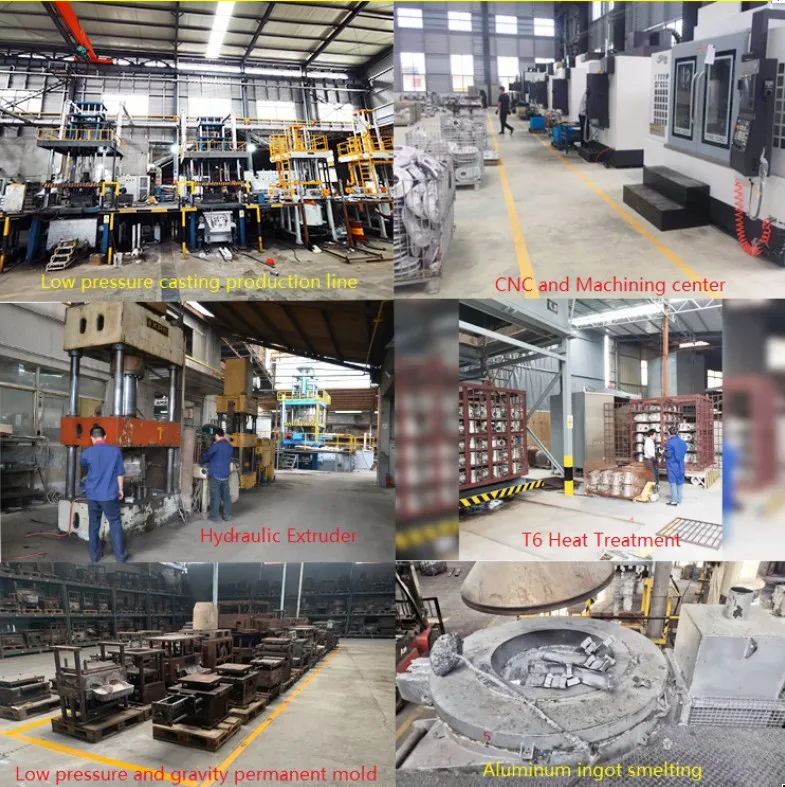

Product Gallery & Workshop

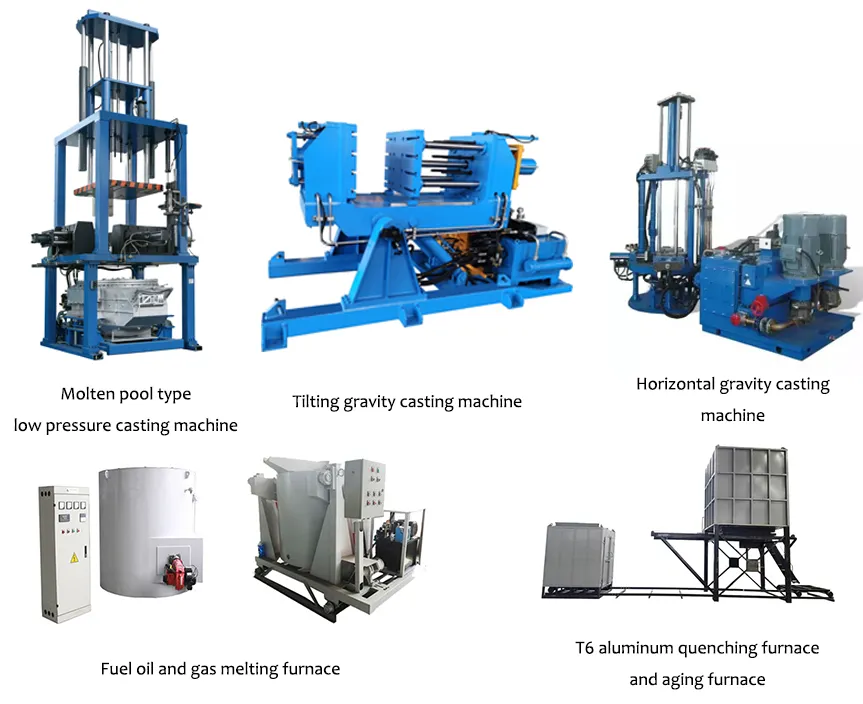

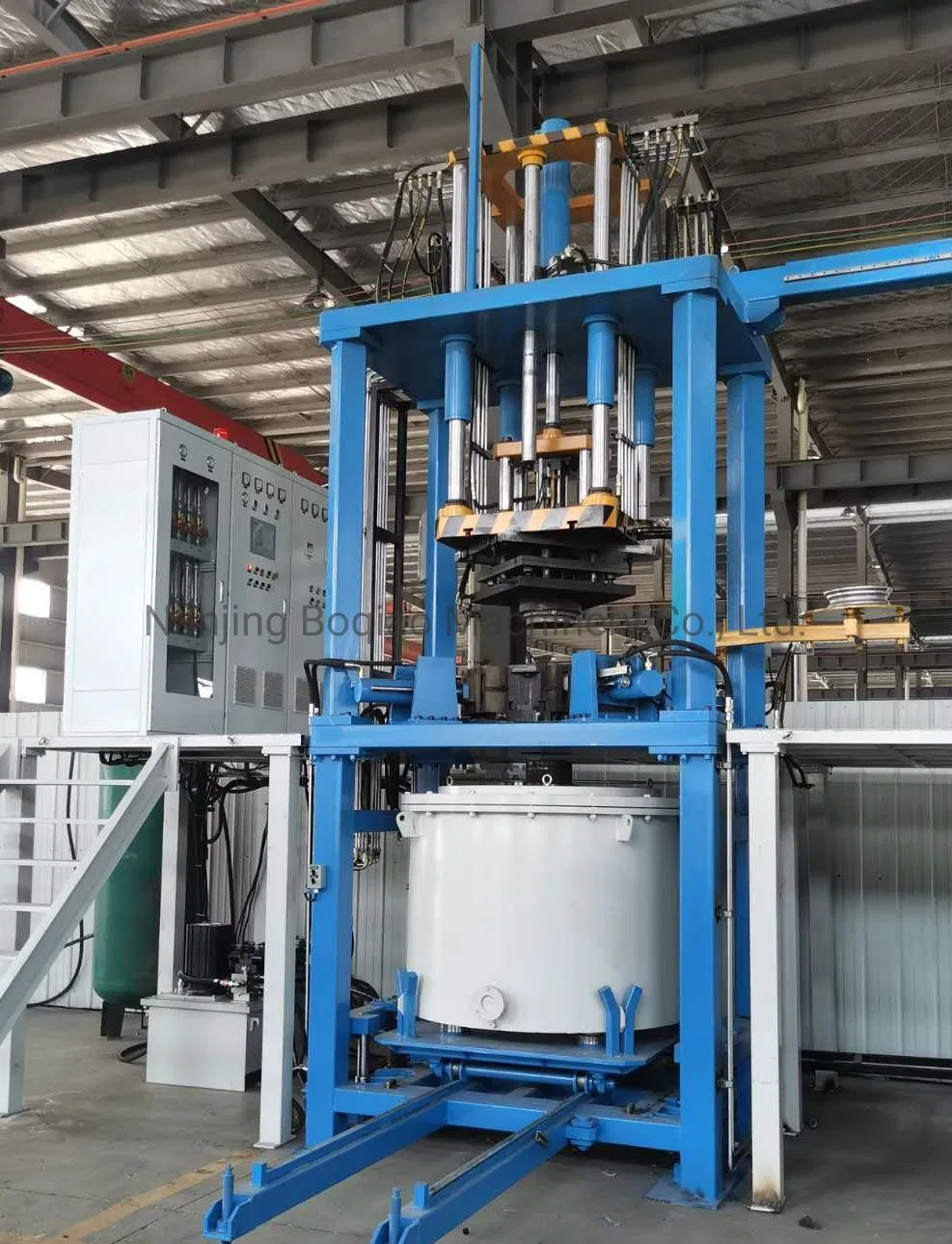

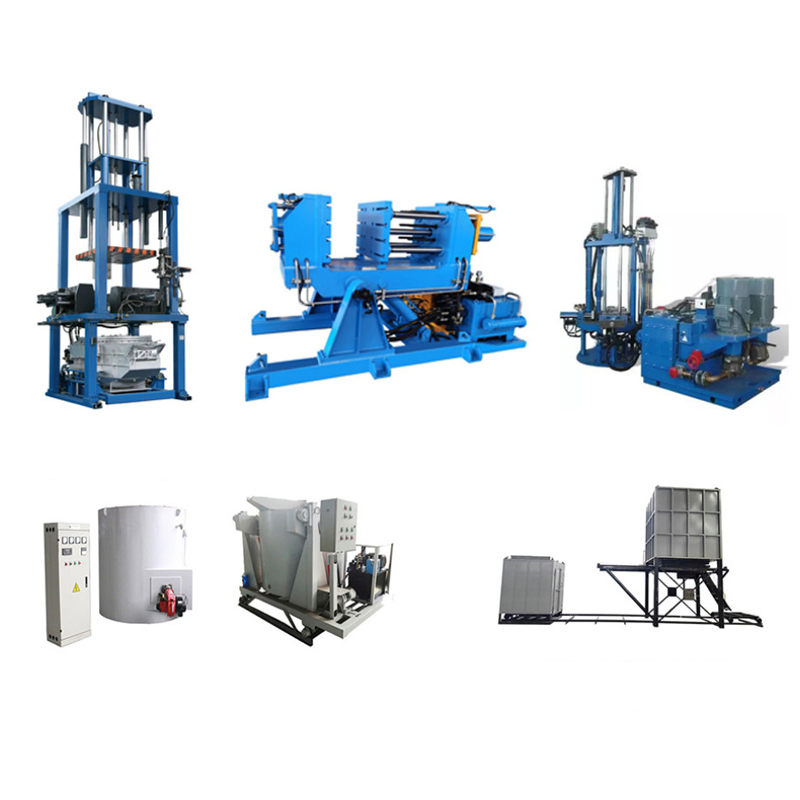

Related Casting Equipment
Frequently Asked Questions (FAQ)
1. What is the main advantage of using a Low Pressure Die Casting (LPDC) machine?
LPDC machines offer superior metal utilization, excellent mechanical properties in castings, and high dimensional accuracy, making them ideal for high-quality aluminum alloy parts.
2. How does the Siemens PLC+HMI system improve production?
The Siemens control system provides a user-friendly interface for precise parameter settings, real-time monitoring, and stable semi-automatic operation, which significantly reduces labor costs and human error.
3. What cooling options are available for the hydraulic system?
Depending on the model and environment, we offer both air cooling and water cooling systems to ensure the hydraulic oil maintains an optimal operating temperature.
4. Can the machine handle different furnace capacities?
Yes, our series includes models like the J452L with 300kg capacity, up to the J458L which supports an 800kg holding furnace.
5. Is technical support provided for installation?
Absolutely. We finish installation and adjustment before delivery to ensure the machine is ready for production, and we provide turnkey project services for seamless integration.
6. What certifications do these casting machines hold?
All our Low Pressure Casting Machines are CE and ISO9001 certified, ensuring compliance with international quality and safety standards.
