Mold Factory Low Pressure Die Casting Process Parts Die Cast Lpdc Machine

1 / 5

Mold Factory Low Pressure Die Casting Process Parts Die Cast Lpdc Machine

Customization:	Available
Control Type:	PLC
Customized:	Customized

Send Inquiry

Product Description

🔹 Basic Specification

Model NO.

J452L

Condition

New

Automatic Grade

Semi-Automatic

Certification

CE, ISO9001

Type

Special Casting

Application

High Quality Aluminum Casting

Control System

Siemens PLC+HMI

Hydraulic System

Servo or Regular Motor

Oil Pump

Gear Pump

Cooling System

Water or Air or Mixed Cooling

Specification

800kg holding furnace

Capacity

100 Set/Year

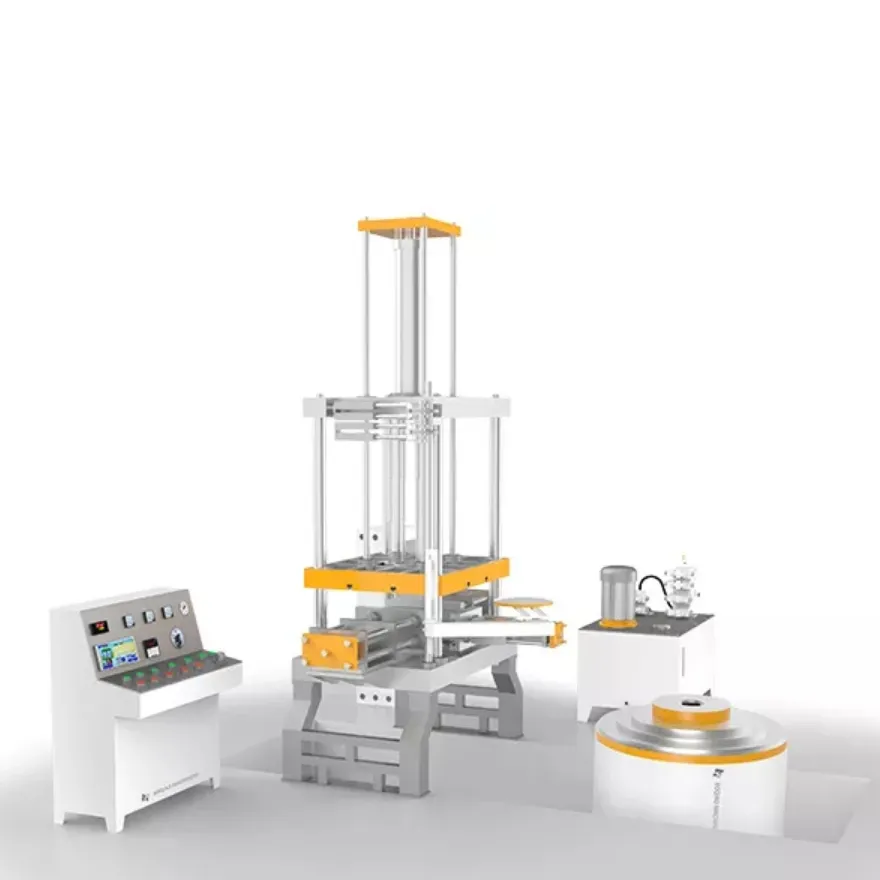

⚙️ Product Overview

✔️ Non-stick aluminum structure reduces oxidation burn

✔️ Full digital servo or frequency hydraulic system (Energy saving >50%)

✔️ 90° installation mold (reverse installation)

✔️ Ultra-high pressure accuracy and high productivity

✔️ Fully automatic cycle and hydraulic power drive

✔️ High rigidity, high strength and high reliability

Key Features:
1. Siemens PLC+HMI semi-automatic operation, high efficiency and labor saving.
2. Integrated supply solutions and turnkey project services.
3. Comprehensive pre-delivery adjustment to ensure product quality.
4. Professional after-sales support including parts and service.

📊 Technical Parameters

Parameter	Fixed Type	Mobile Type
Holding furnace capacity	500kg	500kg
Table size	1400*1400mm	1500*1500mm
Moving template size	800*800mm	800*800mm
Distance between template and workbench	450-1450mm	450-1450mm
Moving template stroke	1000mm	1000mm
Inner dimensions of workbench column	1050*980mm	1050*1150mm
Ejection stroke	50mm	50mm
Mold cooling	10 cooling lines	10 cooling lines

📋 Equipment Specifications (J-Series)

Parameter (Unit)	J452L	J455L	J458L
Fixed columns clearance (mm)	1050*750	1400*1000	1750*1250
Platen Distance (mm)	450-900	500-1350	550-1800
Upper cylinder opening force (KN)	122	177	245
Furnace Capacity (KG)	300	500	800
Furnace Power (KW)	20	30	40
Hydraulic Pressure (Bar)	Min. 80 bar - Max. 120 bar
Control System	Siemens Automatic

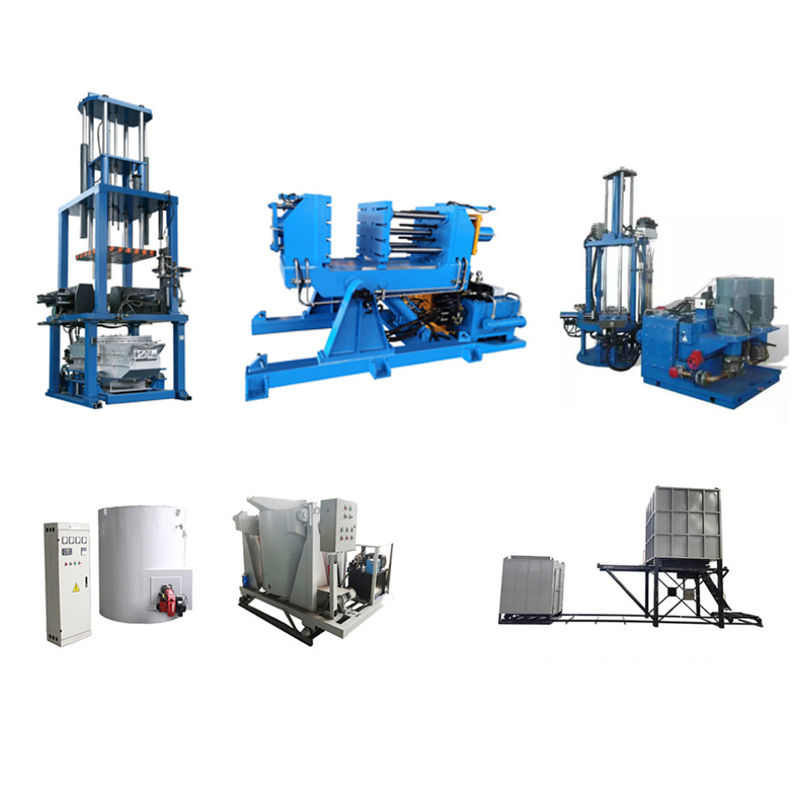

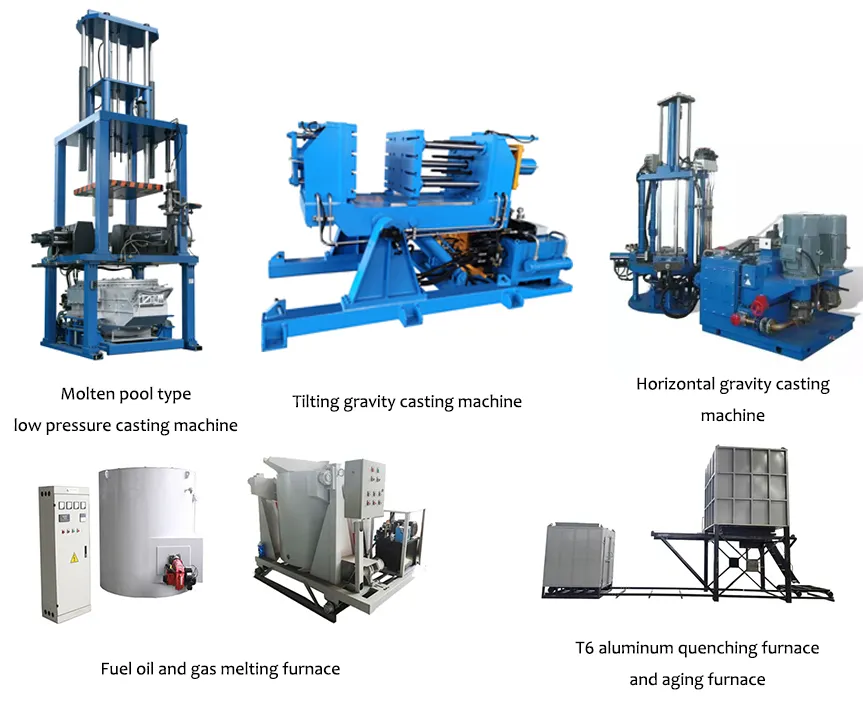

🛠️ Related Equipment & Process

Providing complete low-pressure casting solutions including upfront cost budgeting, mold and equipment development, and production process training. Comprehensive support extends to heat treatment equipment such as aging furnaces (T4) and vertical quenching furnaces (T6).

❓ Frequently Asked Questions (FAQ)

How energy-efficient is the hydraulic system of this LPDC machine?

The machine features a full digital servo hydraulic system or a variable frequency system, which can save more than 50% energy compared to traditional systems.

What control system is integrated into the equipment?

The machine uses a Siemens PLC combined with a Human-Machine Interface (HMI) for reliable, semi-automatic operation and high precision.

Can the holding furnace be moved or is it fixed?

The technical parameters offer both fixed and mobile installation methods for the holding furnace depending on your production layout.

What cooling options are available for the molds?

The system supports water cooling, air cooling, or mixed cooling methods, typically featuring up to 10 cooling lines for optimal temperature management.

Does the supply include process training for new users?

Yes, the turnkey project service includes complete production process development, training, and adjustment before delivery to ensure customers can fully master the casting process.

What additional heat treatment equipment is available?

Beyond the casting machine, we provide aluminum alloy aging furnaces (T4), vertical quenching furnaces (T6), and various resistance melting furnaces.
