Basic Information
Model NO.

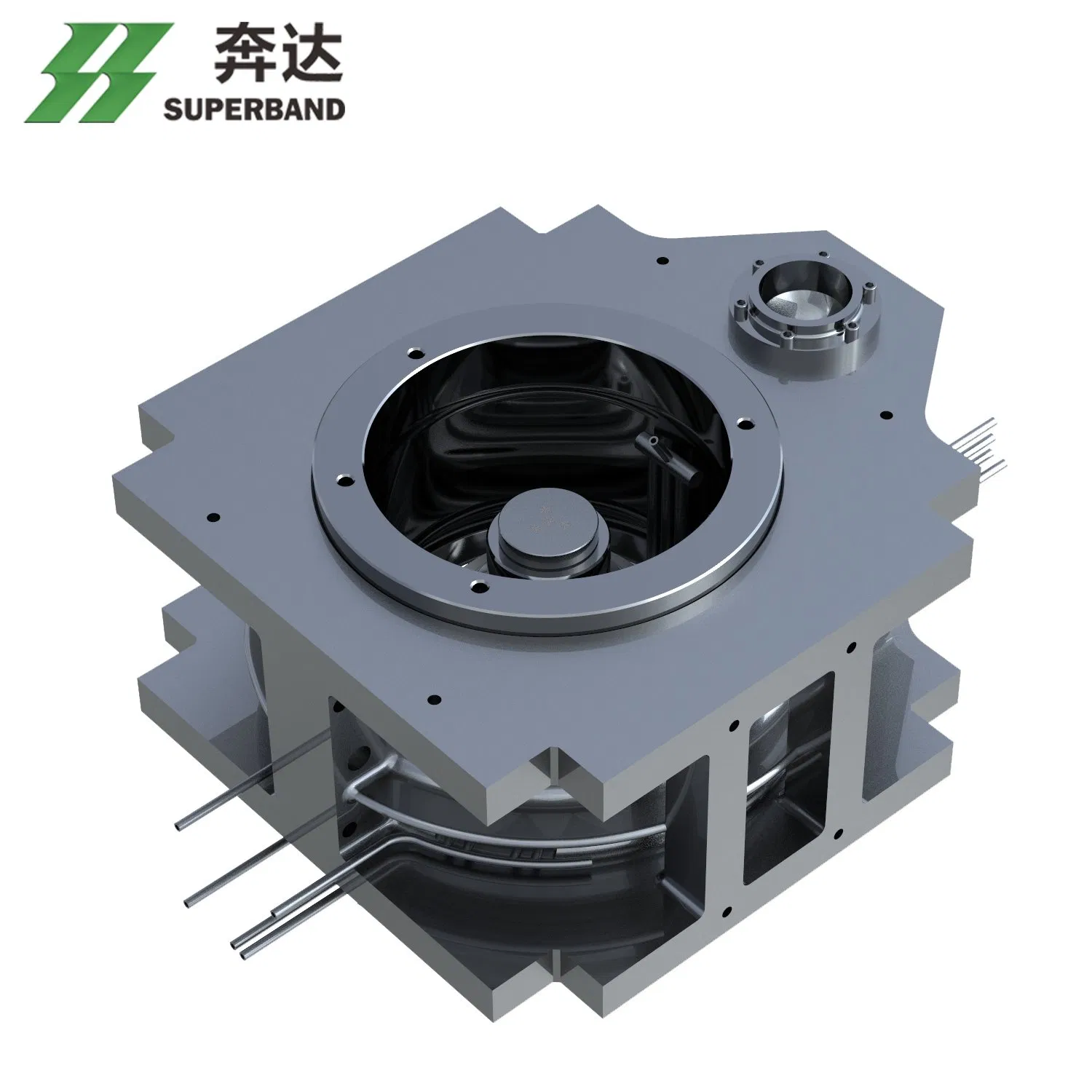

Gravity Wheel Mold
Surface Treatment
Heat Treatment
Mould Life
20,000-90,000 shots
Specification
12-32 inch wheel
Product Description

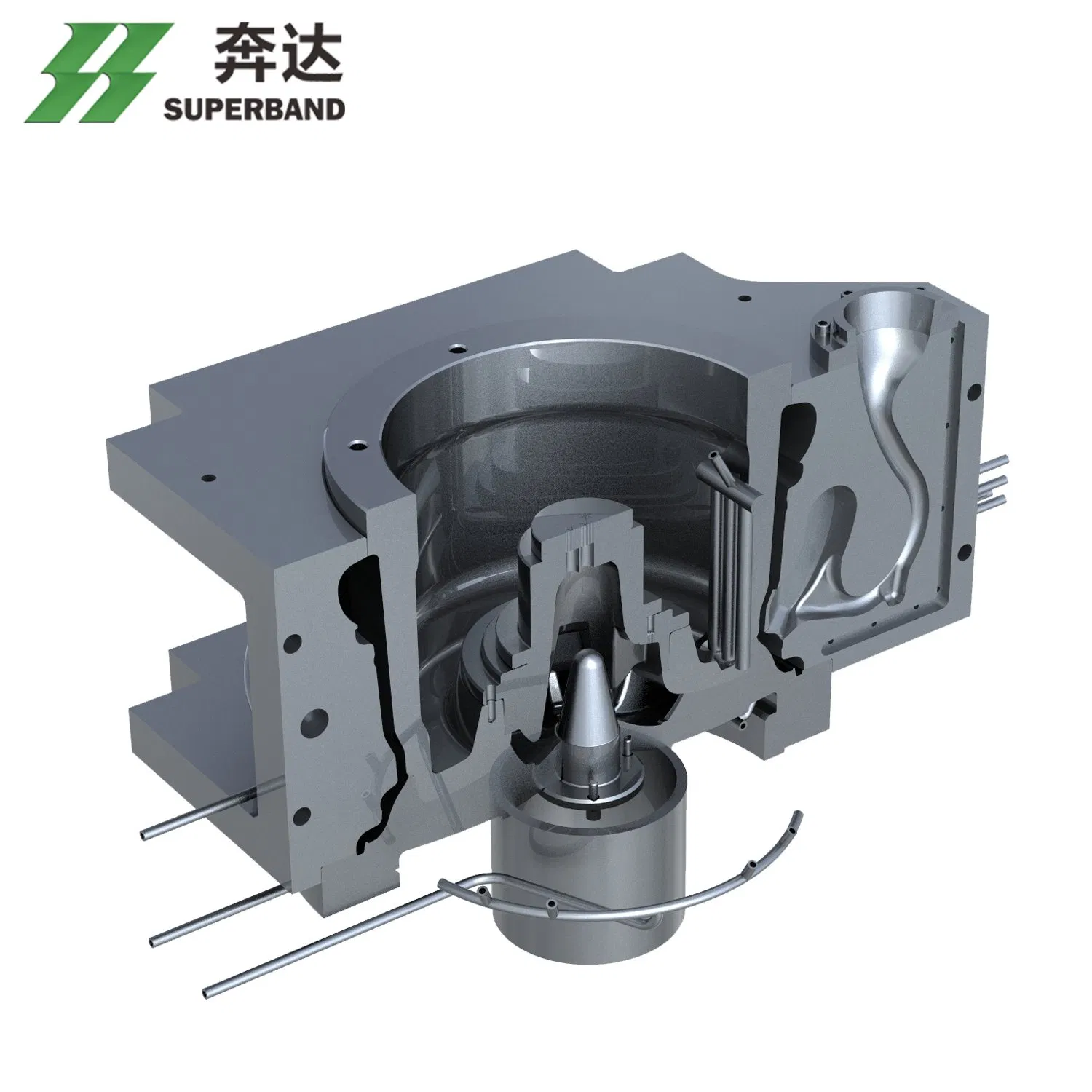

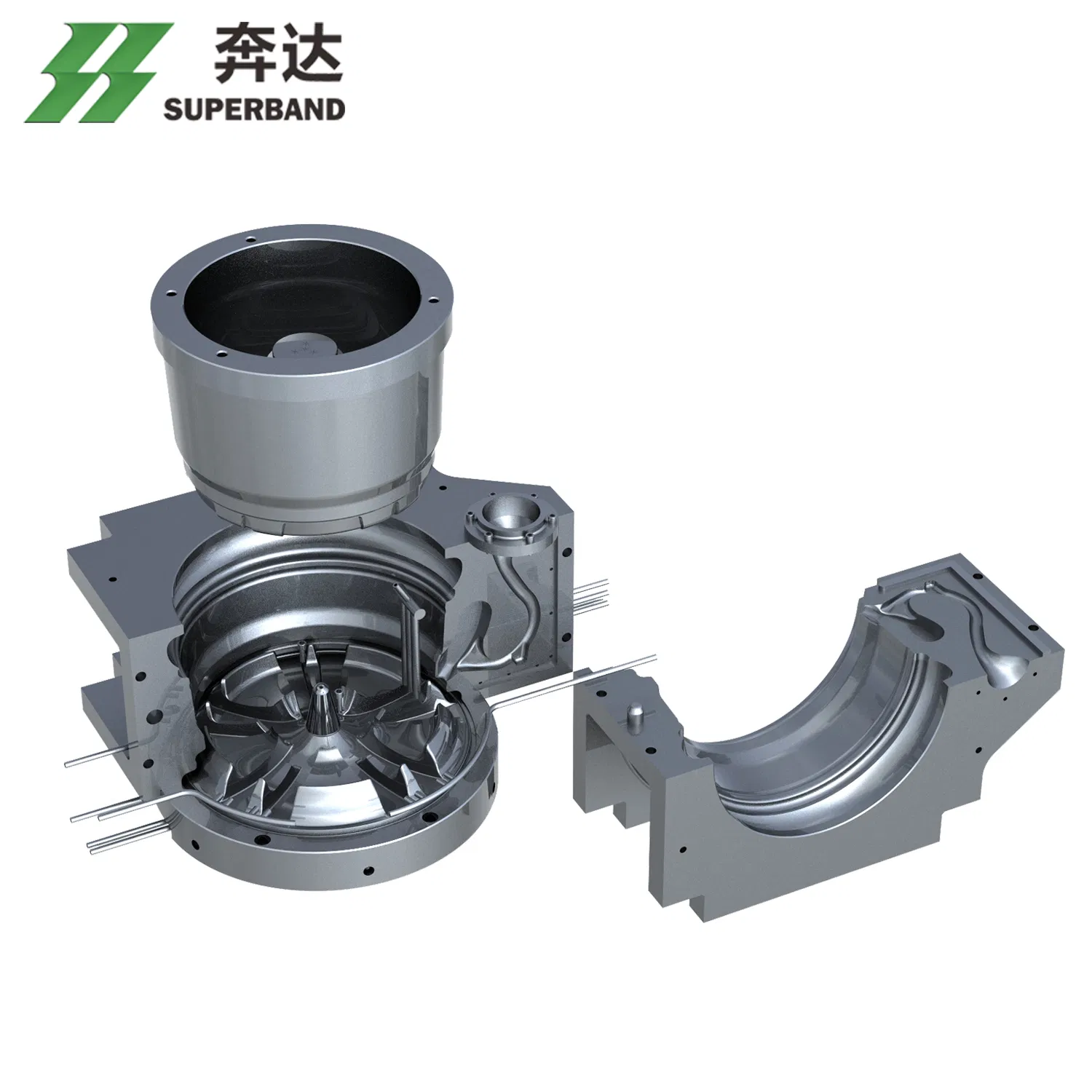

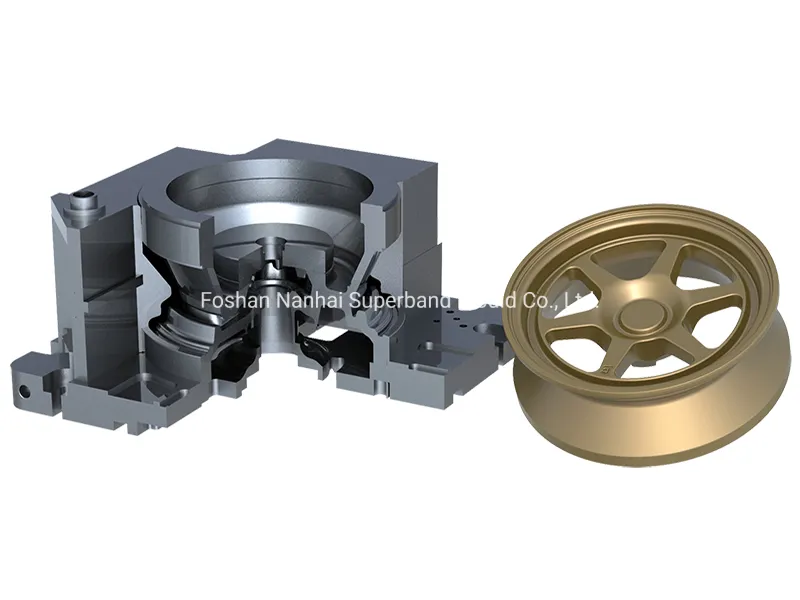

| Die casting mold for aluminum alloy wheel with casting simulation service |
| Size |
12-32 inch |
| Cooling Method |
Water cooling / Air cooling / Mist cooling are optional |
| Hardness |
Top Core: HRC28-32; Bottom Core: HRC40-45 |
| Material |

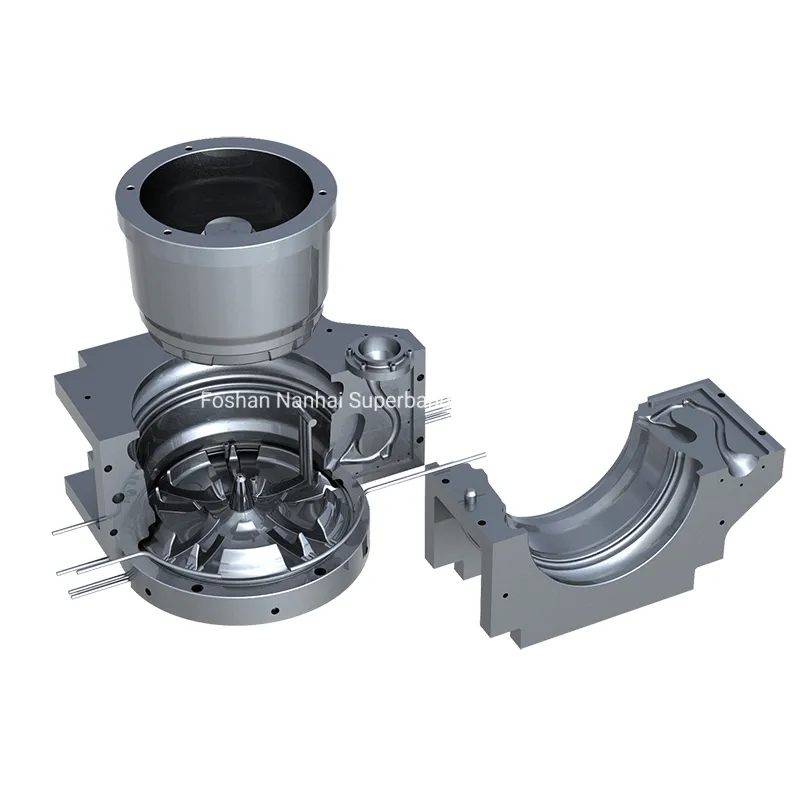

Top/Bottom Core: H13/SKD61; Side Core: 4140/FCD500 |
| Liquid Material |
A356.2, AlSi7Mg, etc. |
| Casting Method |
Low pressure / Forging / Gravity / Counter-pressure / Tilt / Flow forming are optional |
We provide a one-stop solution for aluminum alloy casting issues, combining over 30 years of experience in product and wheel mould design.
Quality Control Standards
- High Precision CNC: Production precision reaching 0.02mm-0.10mm.
- Strict Welding Process: Implementation of infrared temperature sensing equipment to control welding temperature.
- Comprehensive Inspection: Material composition, ultrasonic flaw detection, metallographic inspection, 3D coordinate detection, and cooling ring penetration inspection.
Frequently Asked Questions
1. What makes your casting wheel molds stand out in the industry?
We offer fast delivery times (20-40 days) and strict quality control using CMM, 3D scanners, and X-ray flaw detectors. Our R&D team consists of over 50 professional technicians specializing in CAE analysis and complex mould design.
2. What technical strengths do you provide for aluminum-alloy casting?

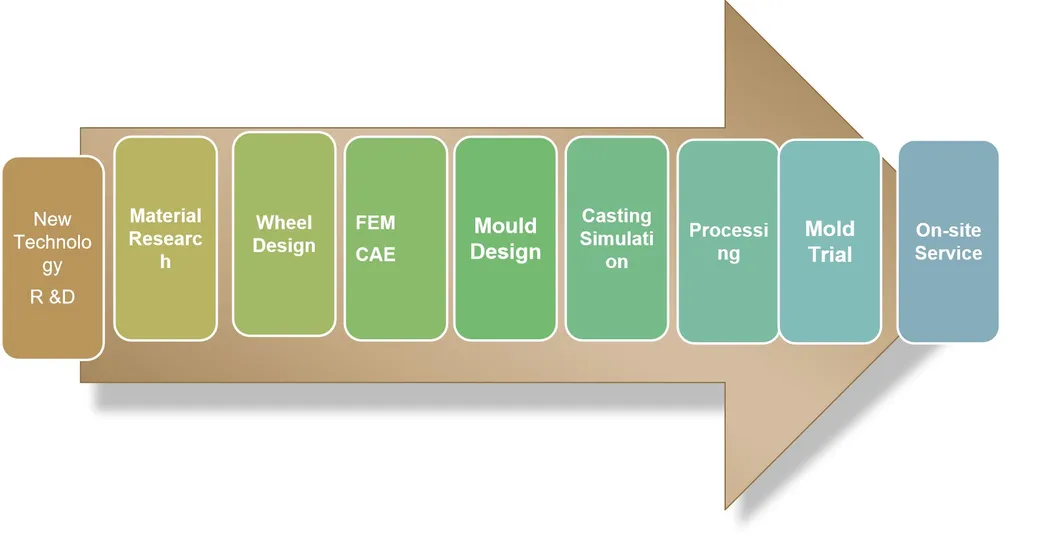

Beyond manufacturing, we provide casting simulation to confirm qualitative schemes and possess an in-house trial-manufacture shop to verify design reasonability and output parameters for customer reference.

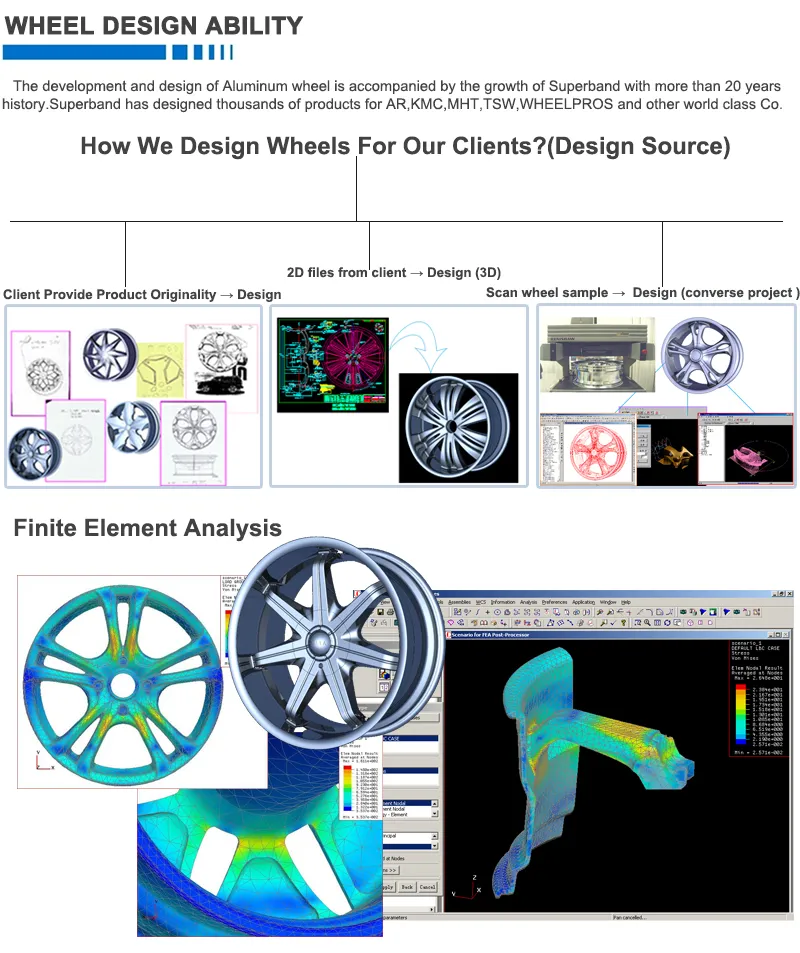

3. What types of software and equipment are used in the design process?

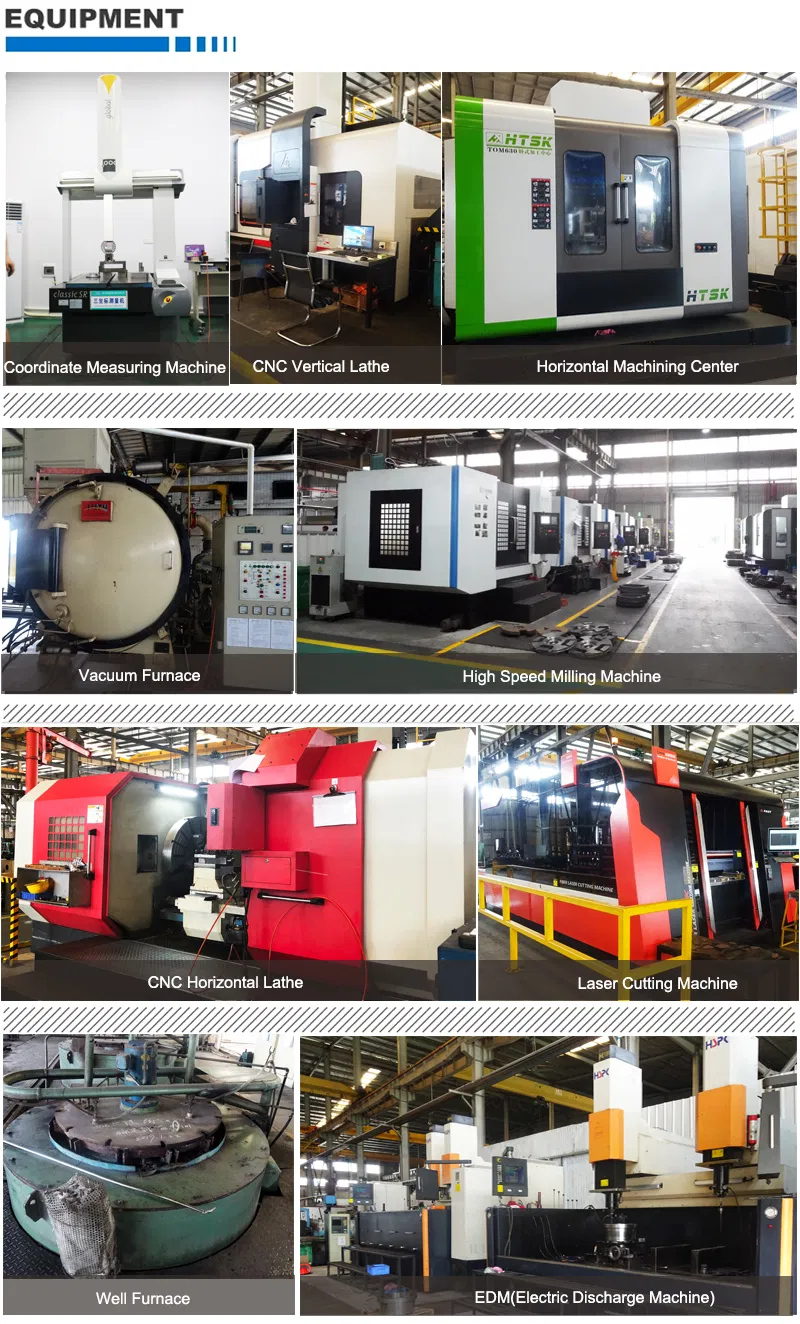

We utilize Siemens NX, AutoCAD, and Magmasoft for development and verification. Our facility is equipped with CNC machining centers, infrared thermal imagers, and portable 3D scanners to ensure dimensional accuracy.
4. How do you ensure the quality of the mould design prior to production?

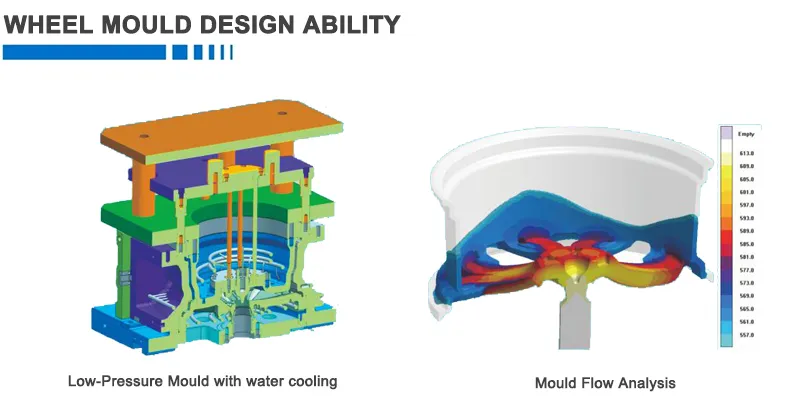

We conduct extensive Filling, Solidification, and Stress simulations using Magmasoft. This helps avoid defects like insufficient pouring, gas entrapment, shrinkage, and stress concentration.
5. What advanced technologies are applied to wheel mold production?
We have developed high-efficiency 3D water cooling technology, edgeless cylinder mold technology, and vacuum die-casting forming technology to enhance mold lifespan and performance.
6. Do you offer customized solutions based on specific casting requirements?
Yes, we design the most suitable mold structure based on the customer's on-site process level and habits, helping them improve casting indexes and process efficiency through traceable quality records.
